Exporting Map Layers From FieldAgent

Exporting Map Layers From FieldAgent Web or Desktop

Map Layers

FieldAgent uses different file types to display different types of map layers. These Include:

Map Type
File Type
Orthomosaic
GeoTIFF
Quicktile
GeoTIFF
Stand Count
Shapefiles*
Tassel Count
GeoJSON
Field Boundaries and shapes
Shapefiles*
Plot Trial
GeoJSON & CSV
*Shapefiles are comprised of 5 different files. Make sure you download each file.

Exporting Map Layers From FieldAgent Web

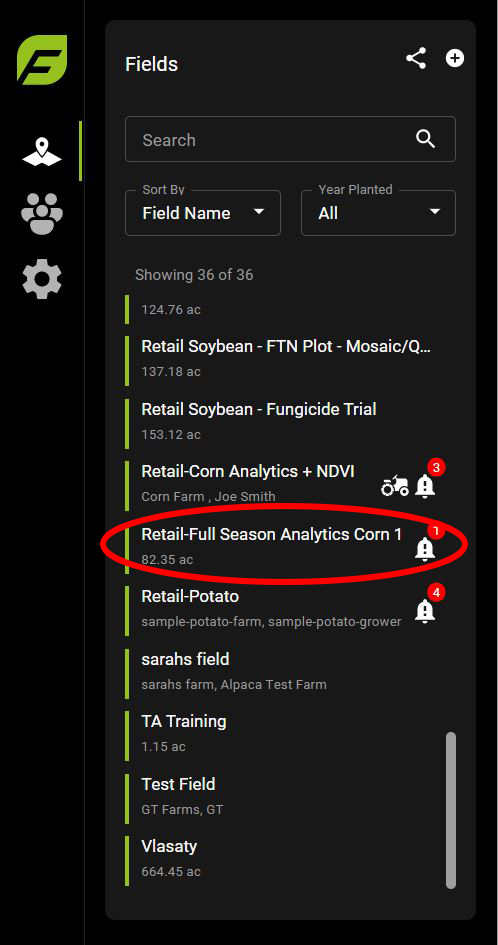

1. Select the Field you want to export.


2. Open the Map Layers section

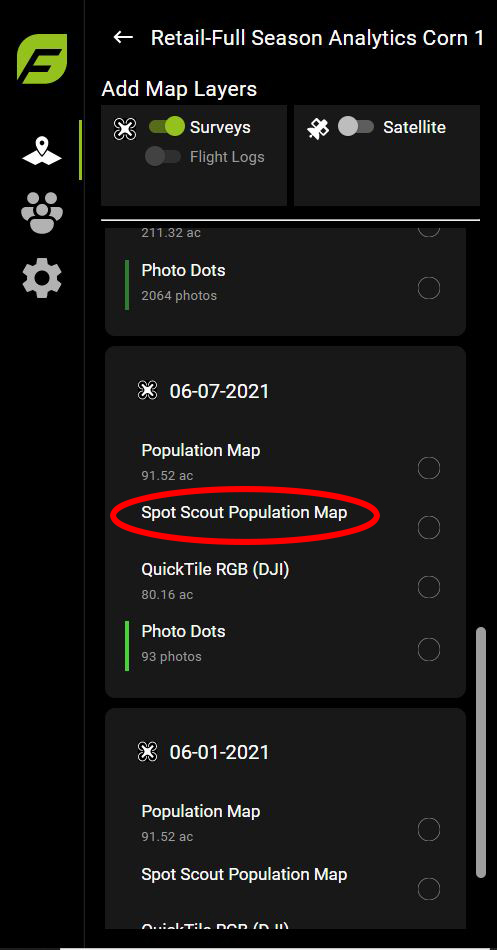

3. Click the name of the survey to open the layer details section.

Clicking the circle to the right of the name will display the map layer, make sure you click the name to open the details section.

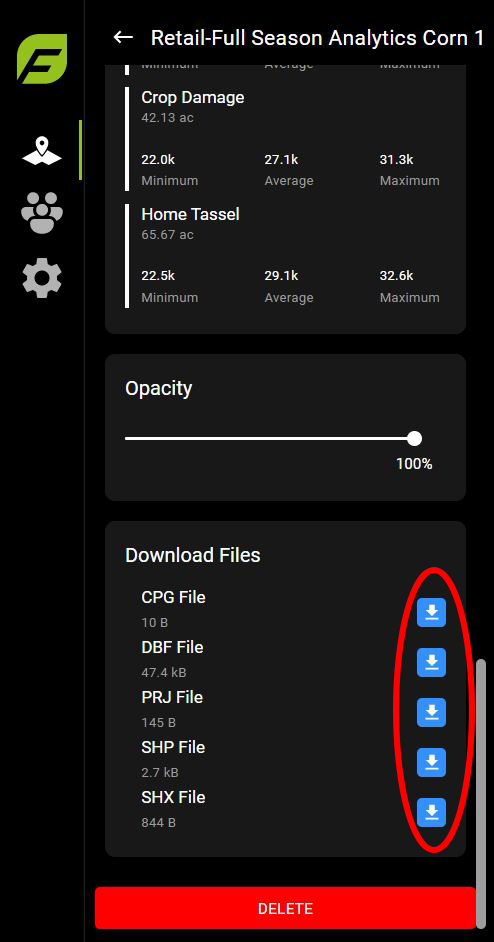

4. Scroll to the bottom where you'll find the Download Files section.

5. Click the download icon for each file.

Shapefiles have multiple files to download, make sure you download every file.

Exporting Map Layers From FieldAgent Desktop

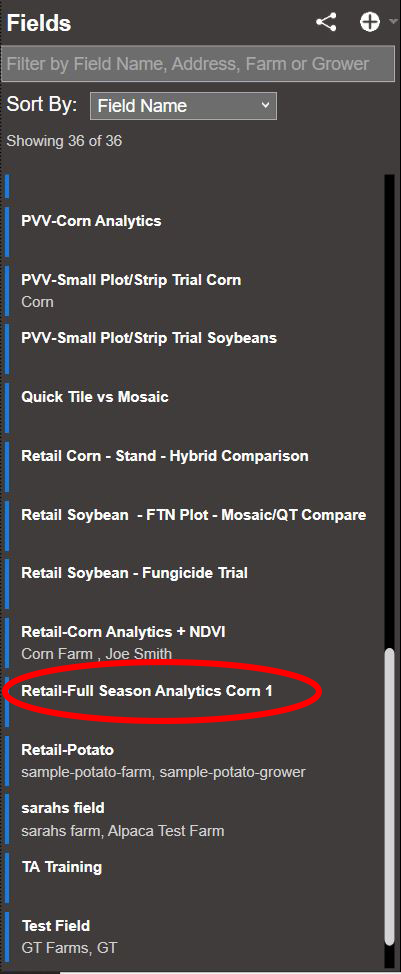

1. Select the field you want to export from.

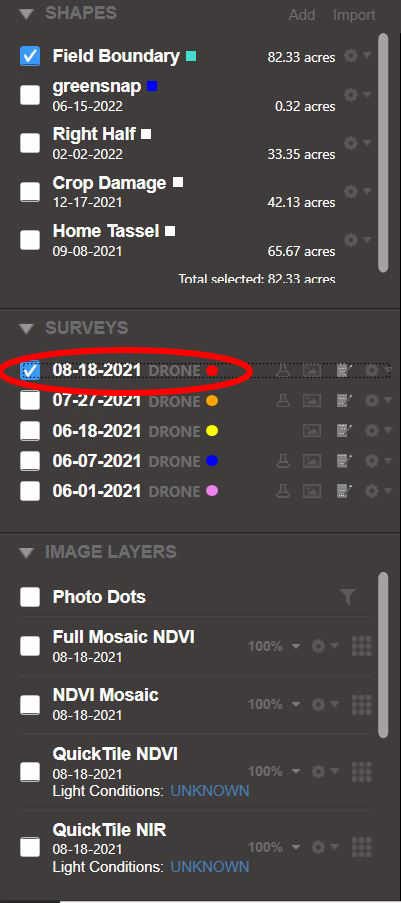

2. Select the survey date that you want to export map data from. Maps captured on that date will now populate in the Images Layer.

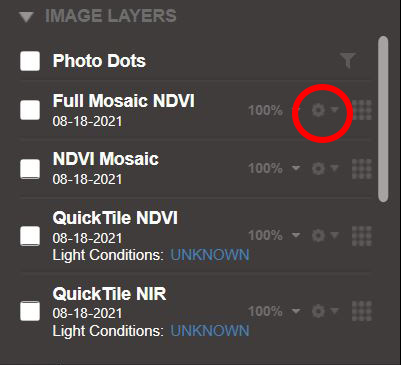

3. Click the gear icon next to your map layer and select export from the drop down menu.


4. Choose the export location and press OK. Depending on your map type, you will also download the Images used to create your map.

Exporting Field Boundaries From FieldAgent Desktop

Field Boundaries can only be exported from FieldAgent Desktop. Field boundaries created in FieldAgent Web or Mobile can be accessed on Desktop, once they have been synced.

1. Select the field you want to export

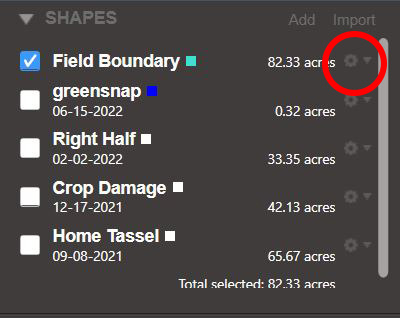

2. Click the gear icon next to your desired boundary in the shape section. Select export from the drop down menu.


3. Choose the export location and press OK.
