FieldAgent Web - How to Remove Data Points From Spot Scout Maps

FieldAgent Web - How to Remove Data Points From Spot Scout Maps

FieldAgent Web now supports the ability to exclude individual data points from your spot scout maps. Removing points will affect how your data is displayed on the map, your field's zonal statistics and the histogram.

Why Exclude Data Points?

Any imagery which is not representative of the field can be considered for exclusion. Images taken at the edge of the field are good candidates for exclusion, as they might include trees, water, roads or other unique features.

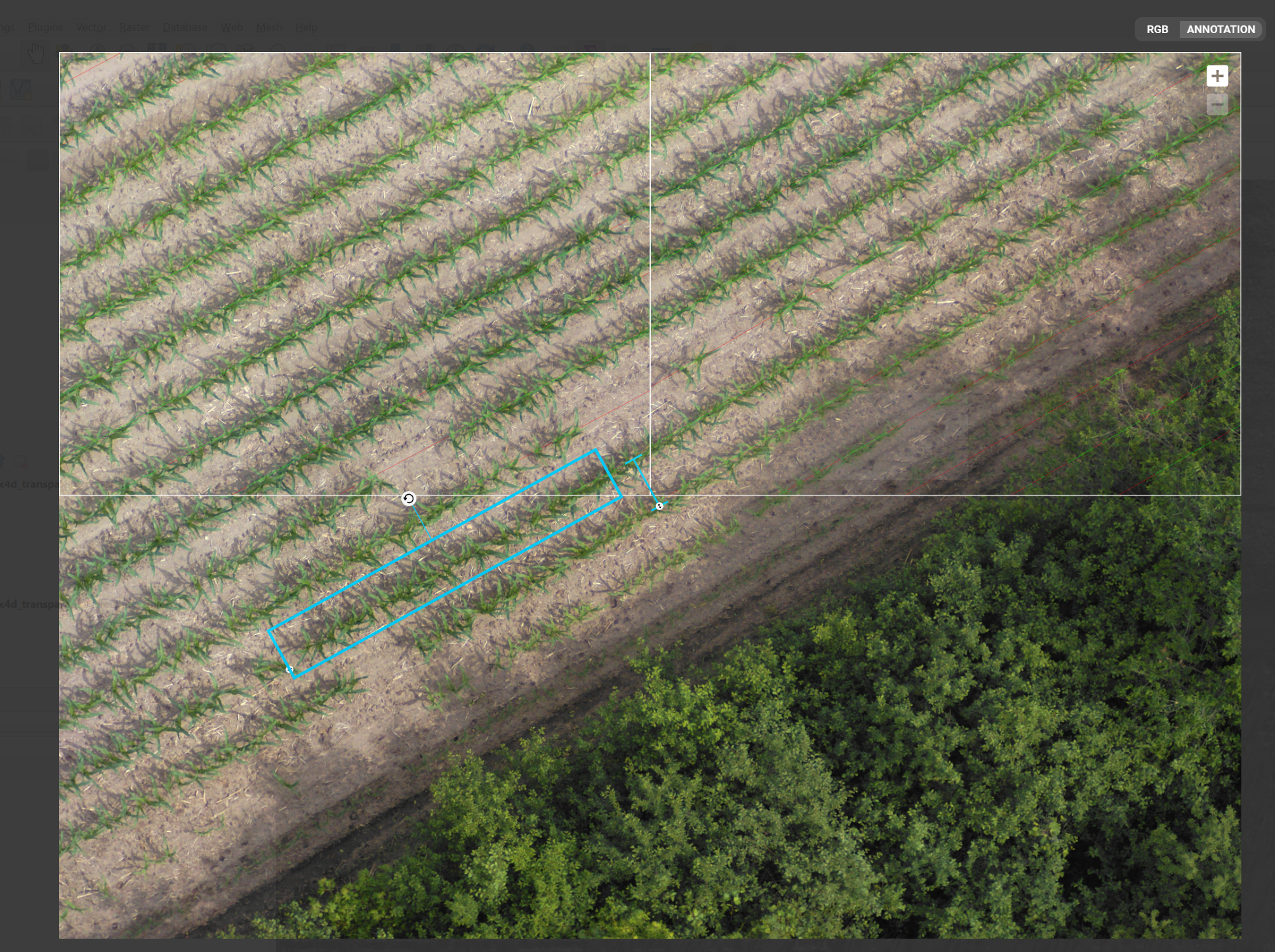

      FieldAgent Web: Data Point at the edge of the field

By excluding these types of data points, you can produce maps and zonal statistics which better represent your field.

How to Exclude Data Points

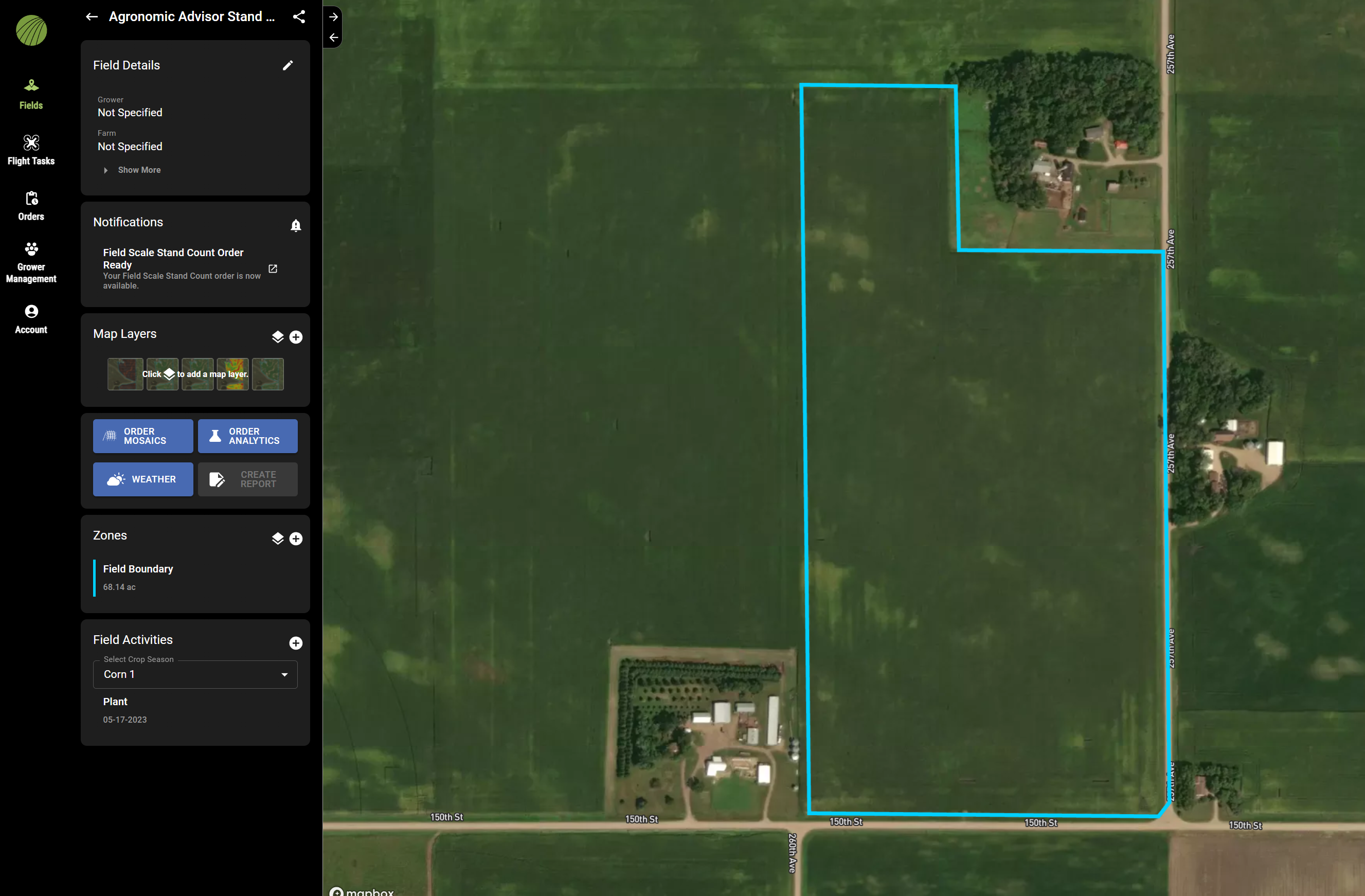

1. Open FieldAgent Web and navigate to your field.

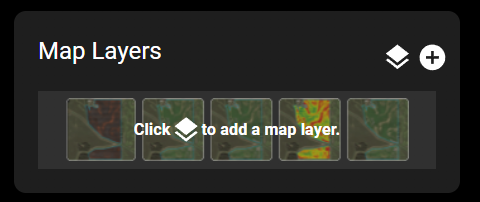

2. Click the Map Layer Section, from the left side of the screen.


3. Click the circle next to a Spot Scout Map Layer to load it on the map. Then click the Map Layer's name to open its details page

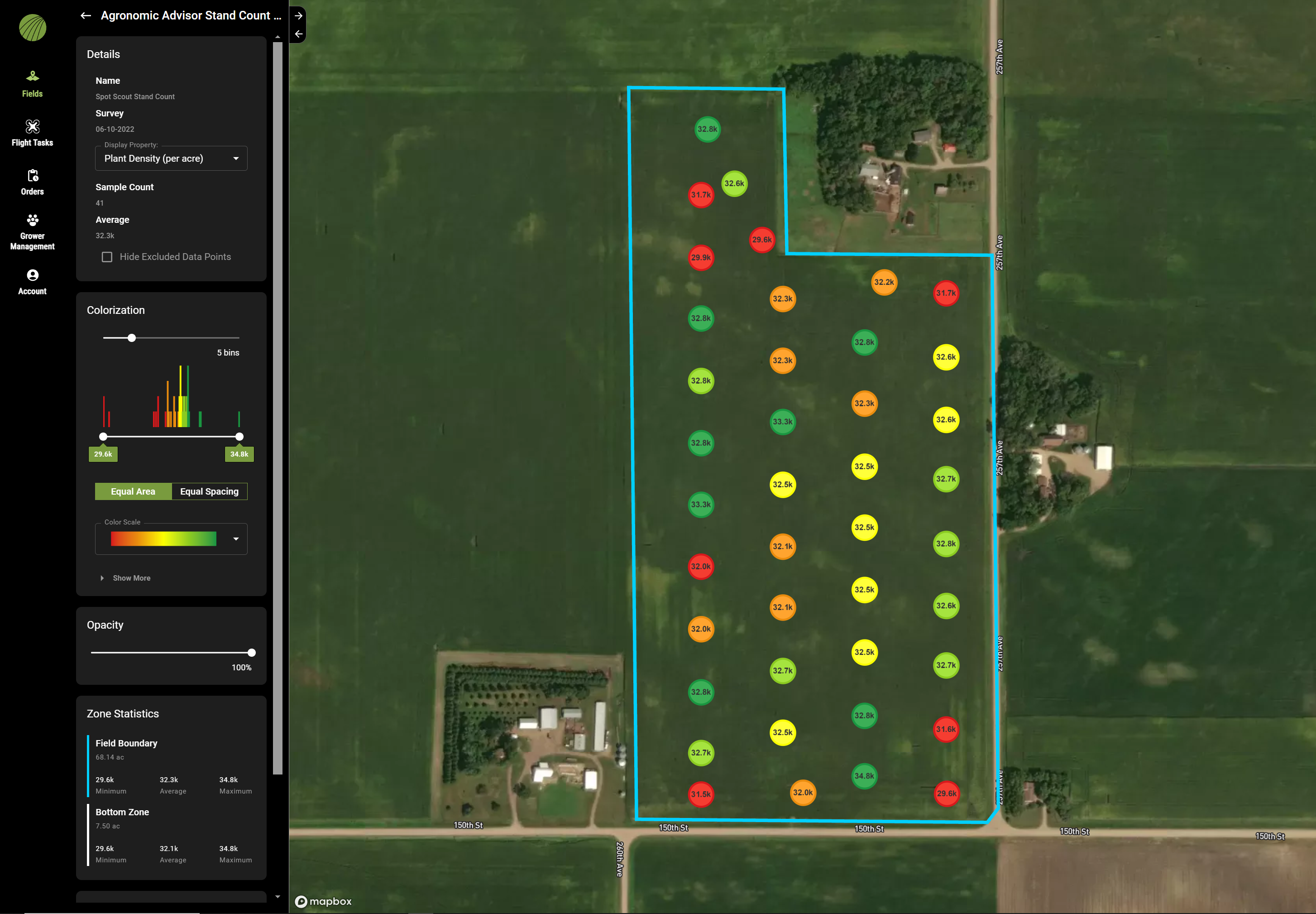

4. FieldAgent Web now displays your Spot Scout on the map, and details about the data on the left side section.

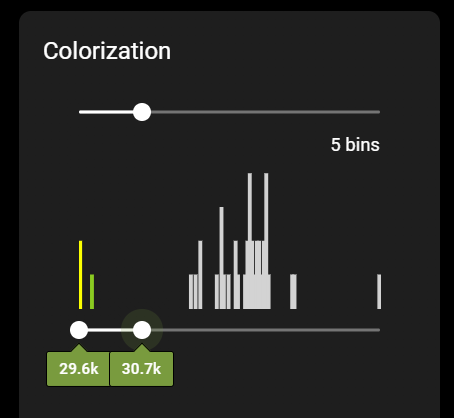

5. Filtering the histogram, in the details section, can be useful to identify outlying data points on the map.

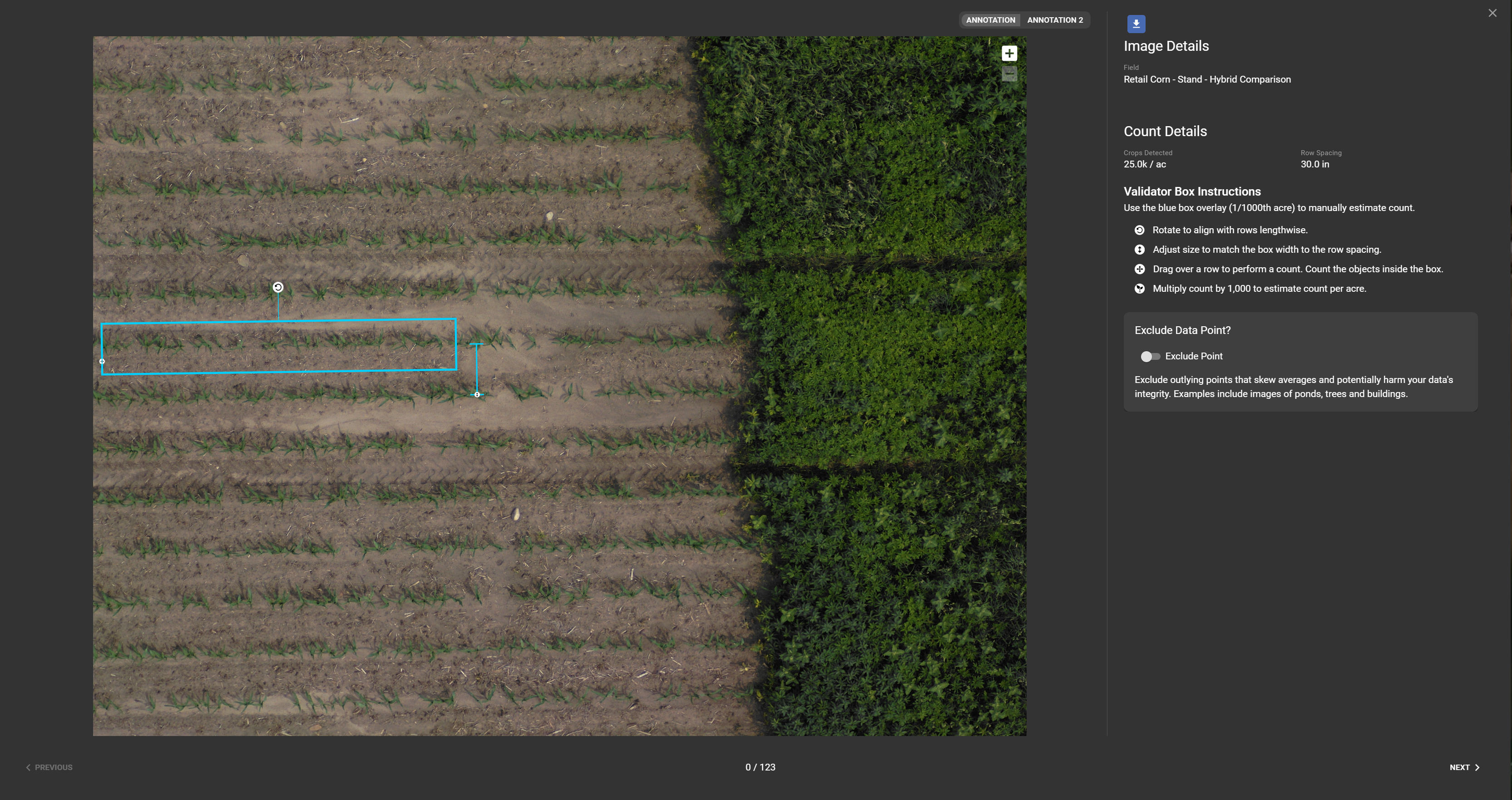

6. Click individuals points on the map to open the Image Details box and investigate the underlying imagery.


7. Toggle the "Exclude Point" option on the right side of the Image Details Box.


After toggling the switch, you will receive this confirmation pop up at the bottom of the screen


Repeat this process for each data point you want excluded from the spot scout map.


8. Once you have excluded your selected data points, your field's histogram and zonal statistics will update and remove those data points.

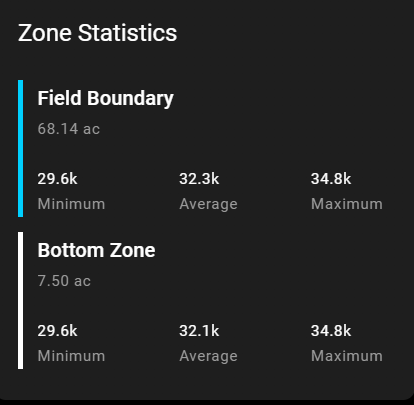

      Zonal Statistics Before Exclusion

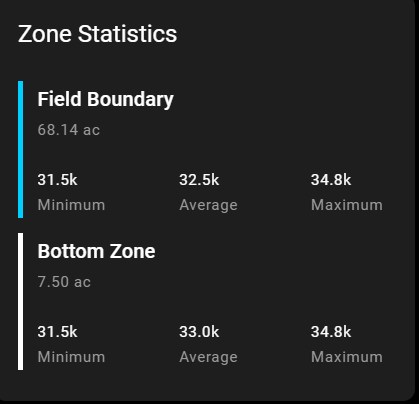

      Zonal Statistics After Exclusion

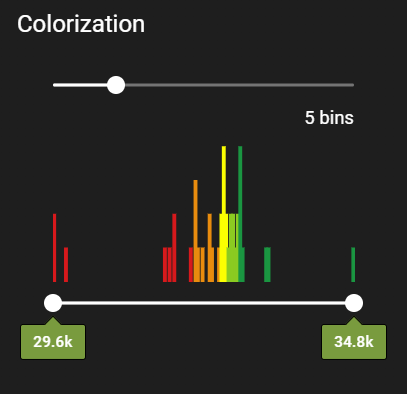

      Histogram Before Exclusion

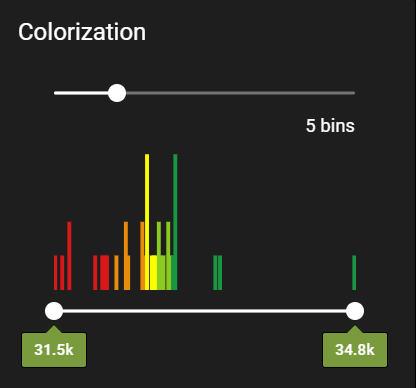

      Histogram After Exclusion

Optional: Hiding Excluded Data Points.

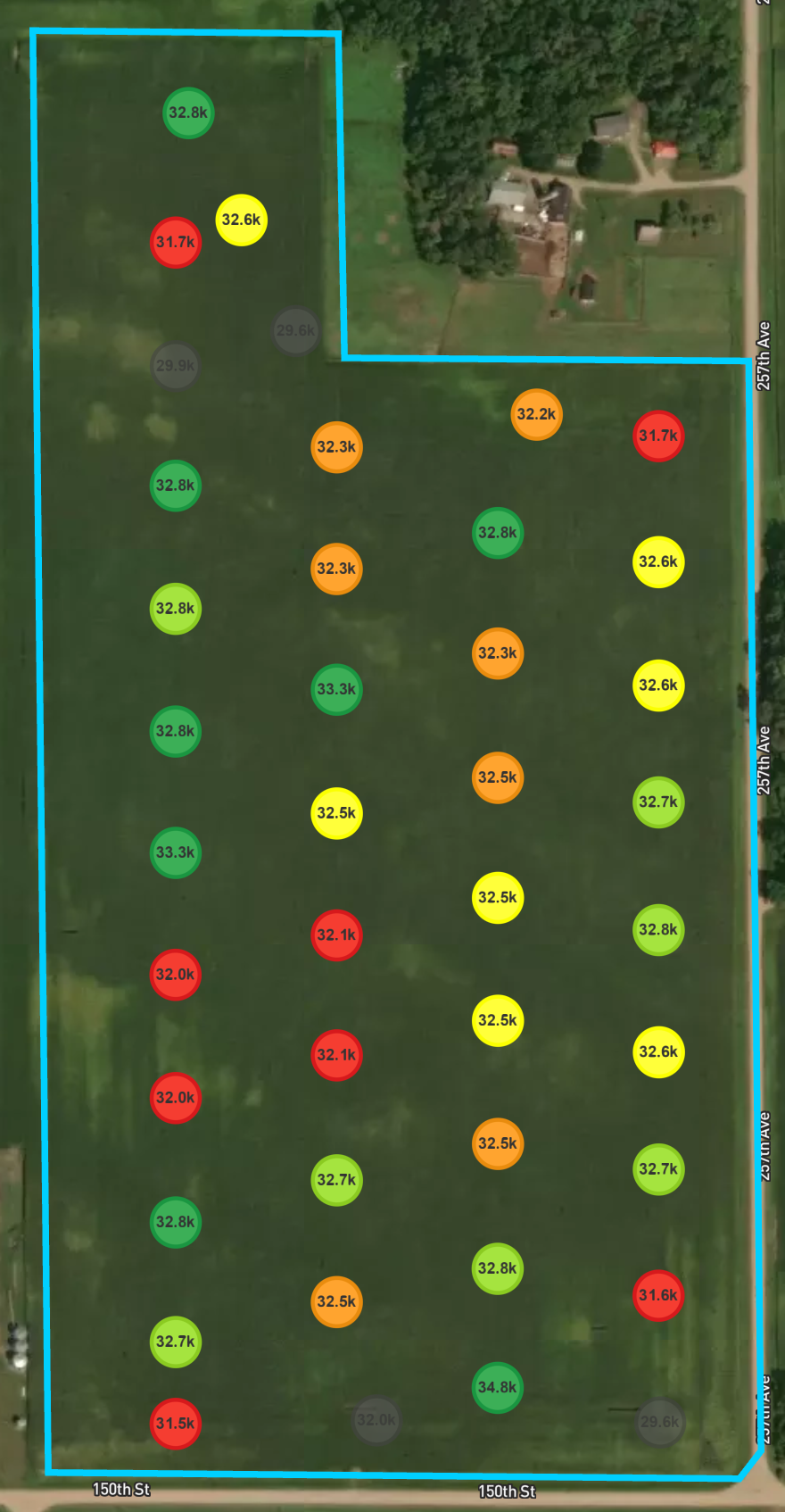

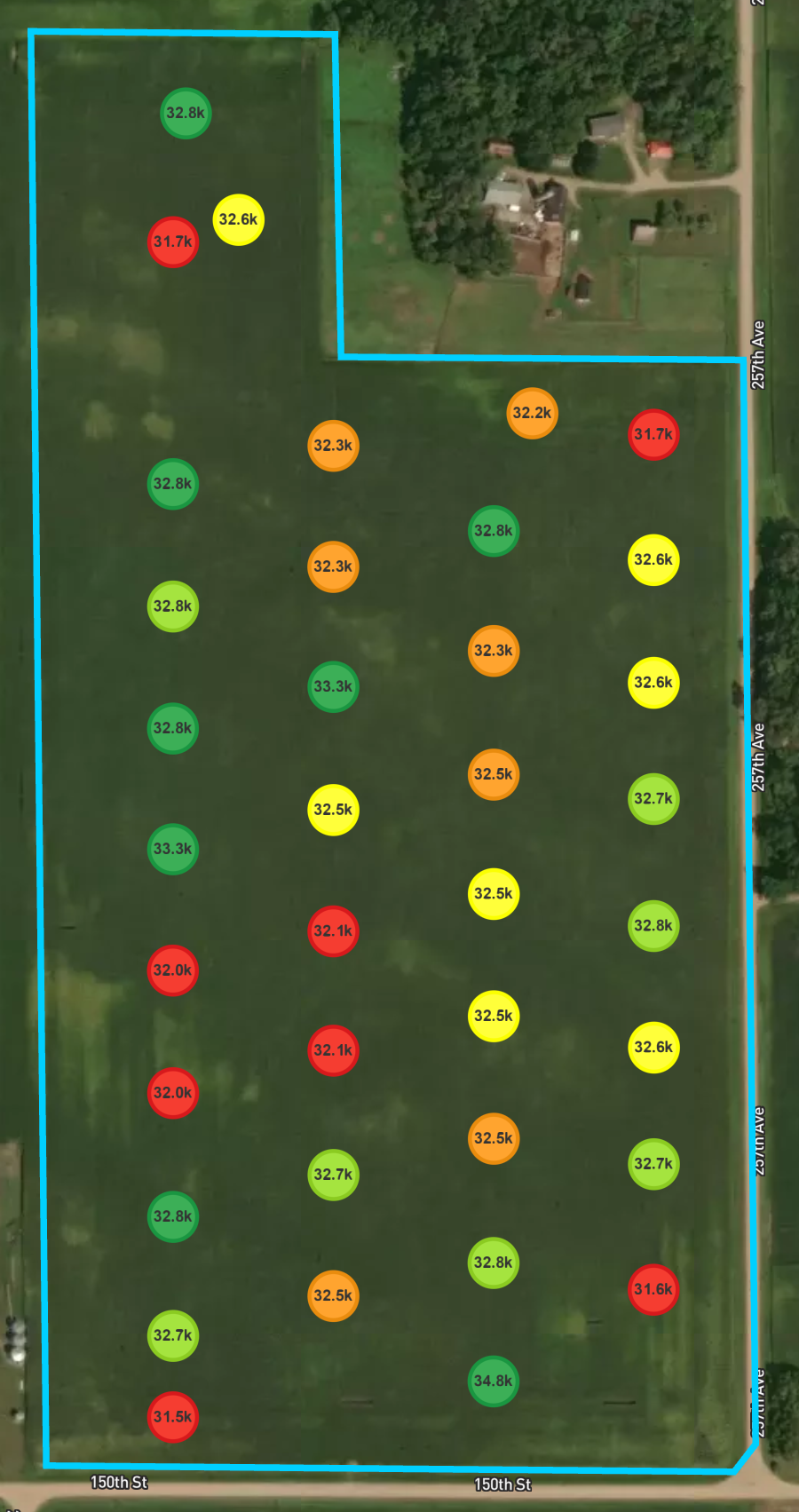

Once you have excluded data points, they will still appear as grey discs on the map.

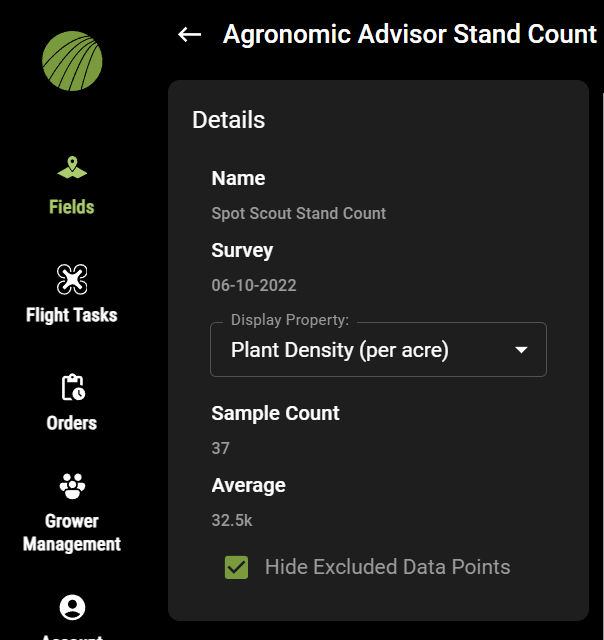

To remove these discs from the map view, Click "Hide Excluded Data Points" from the left side section.


The grey discs are now hidden from the map view.
