FieldAgent Web User Guide

FieldAgent Web - User Guide



FieldAgent(R) Web App
User Guide
English


 Engineered in Minneapolis, MN, USA

1 September 2022
Doc #67001 Rev F


Copyright © 2022. All rights reserved.

Trademark Notice

FieldAgent is a registered trademark of Sentera. Other featured words or symbols, used to identify the source of goods and services, may be the trademarks of their respective owners.

Third-Party Content, Products, and Services Disclaimer

This software and documentation may provide access to or information on content, products, and services from third parties. Sentera is not responsible for and expressly disclaim all warranties of any kind with respect to third-party content, products, and services. Sentera will not be responsible for any loss, costs, or damages incurred due to your access to or use of third-party content, products, or services.

The information contained herein is subject to change without notice and is not warranted to be error-free. If you find any errors, please report them to us in writing.


Introduction

Welcome to the Sentera FieldAgent Web App User Guide. This user guide is designed to provide documentation for people who will use FieldAgent on a professional basis. This document is designed to be read by any user of FieldAgent, as most users will have access to the features documented here. This guide is targeted to new users with an understanding of digital agricultural platforms.

Login and Passwords

The following section describes how to login and maintain passwords.

System Requirements

FieldAgent Web App must meet these system requirements:



1.       High speed internet connection.

2.       An Internet browser, such as Chrome, Firefox, Safari, Edge, Opera.

3.       An operating system, such as Windows, Mac OS, Android, iOS.

Login Procedure

To log into FieldAgent Web App, follow the following steps:



1.       Open the web browser.

2.       Navigate to: https://fieldagent.sentera.com/.

Sign Out of FieldAgent

Users of FieldAgent Web App should completely sign out at the end of the session to ensure data privacy and integrity. This section describes how to properly sign out.



1.       Click Account icon at the top right side of the screen and click Sign Out, as shown in the following figure.

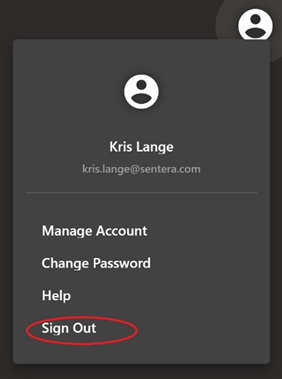

Figure: Sign Out

System Selections

Users of FieldAgent Web App can view and update various system selections by clicking the gear icon at the left side of the window, as shown in the following figure.


Figure: Gear Icon

Language

Users of FieldAgent Web App can change the update the app to display in their desired language. To select a language:



1.       Click the gear icon at the top of the menu.

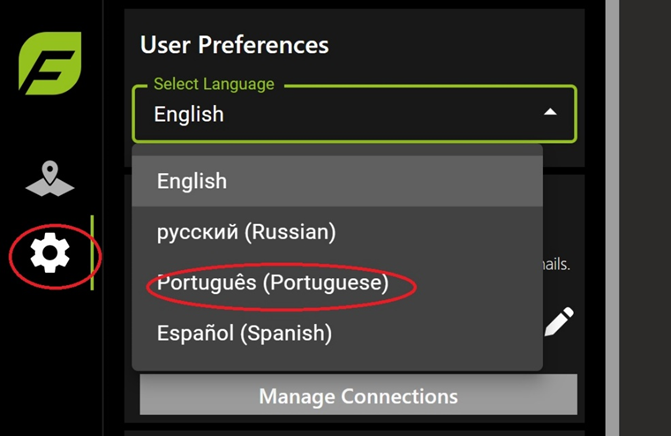

2.       Select the language from the dropdown, as shown in the following figure.


Figure 3: Language Selection

Units of Measurement

Users of FieldAgent Web App can update the Web app to different units of measurement. To select a different measurement:



1.       Click the gear icon at the top of the menu.

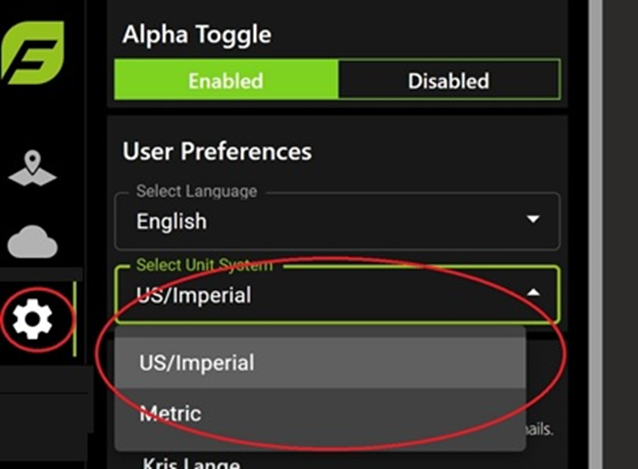

2.       Select the preferred unit of measurement, as shown in the following figure.


Figure Units of Measurement

Manage Account

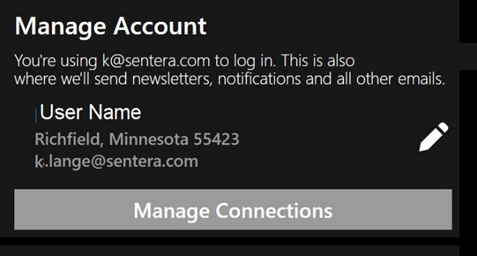

Users of FieldAgent Web App can manage the account by selecting the pencil icon or Manage Account button, as shown in the following figure. If you have access to manage accounts, click Manage Connections and update the information.


Figure: Manage Account

Billing

Users of FieldAgent Web App, who have access, can manage billing details by selecting the pencil icon in the Billing section, as shown in the following figure.

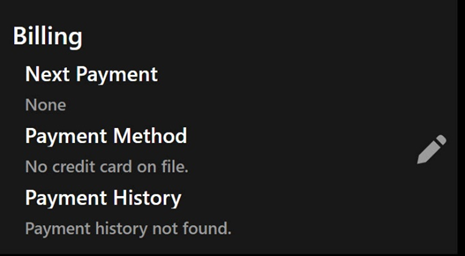

Figure: Billing

Subscriptions

Users of FieldAgent Web App can switch between the fields they are subscribed to selecting a different subscription from within the Subscription area, as shown in the following figure.

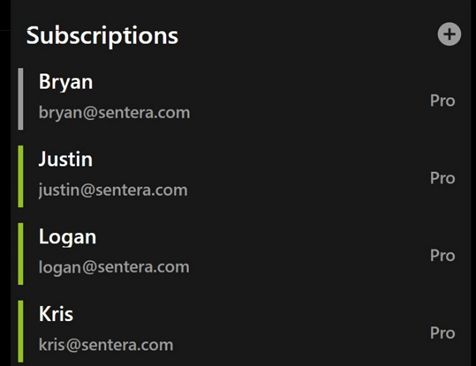

Figure: Subscriptions

Field Navigation

This section describes how to navigate the FieldAgent Web App.

FieldAgent Web App lists all fields that are available under your User ID.

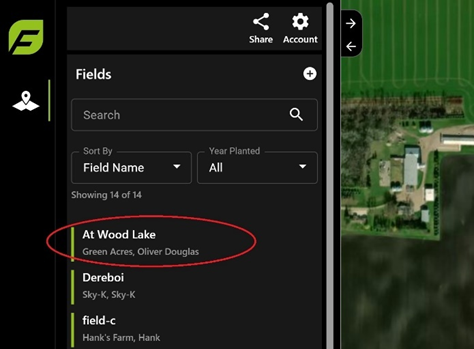

1.       Select a field. The menu changes and the field displays, as shown in the following figure.

Note: Select Sort By or Year Planted to narrow the search.

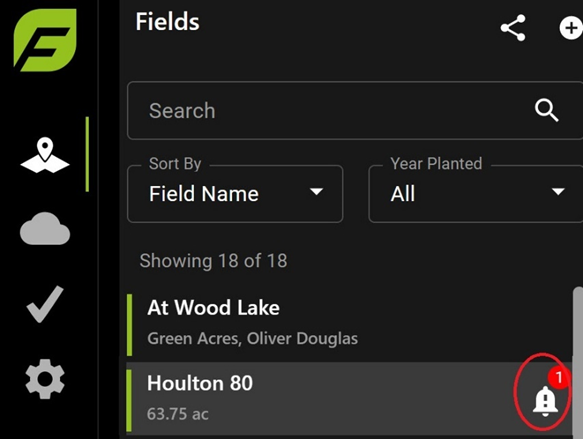

Figure: Fields

2.       Once the field is selected, the menu changes and the field displays.

3.       Click the back arrow at the top of the menu to go back to the previous menu.

For organizations that have multiple levels or hierarchy, there are two ways to search for the field you want to view. The following section describes those options.

Use Menu Hierarchy

To search using the hierarchy menu to view all of the fields under a particular organization:

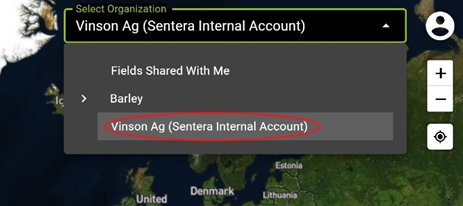

1.       Select the dropdown menu from the upper right corner of the screen, next to the organization name to expand the organization’s field list, as shown in the following figure.

Figure: Fields

2.       Continue to select arrows until the correct field is found.

3.       Select the field.

To search using the Search field:

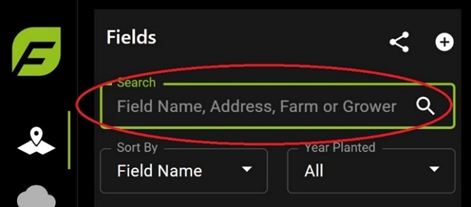

1.       Enter the name, address, farm, or grower of the field, as shown in the following figure.

Figure: Fields

2.       As you start to type the name of the field, it starts to auto-populate the list, as shown in the following figure. Or you can select the field from the list of fields.

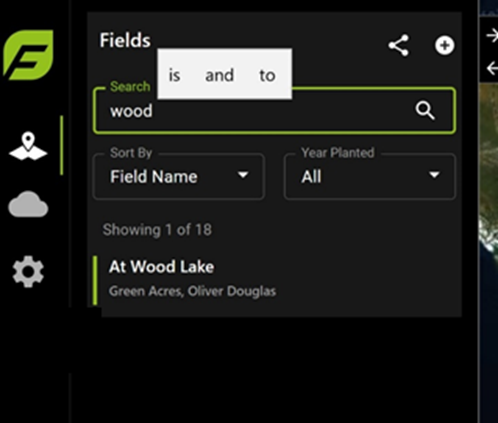

Figure: Auto-populated Fields

3.       Select a field.

This section describes how to navigate the Fields menu, which includes the Shape Annotations and Map Layers.

Create Shapes in Zones

Zones allow the user to turn on and off field boundaries, create additional boundaries, or add shapes to the field.

To turn on or off the field boundary:

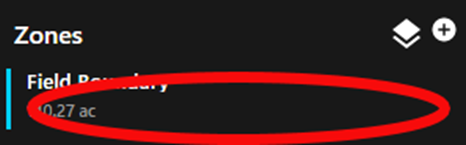

1.       Select the field boundary in the Zones area, as shown in the following figure.

Figure: Field Boundary

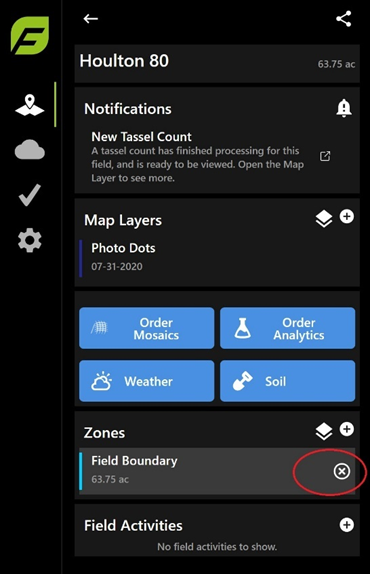

2.       Click the ”x” to turn the Field Boundary on and off, as shown in the following figure.

Figure: Turn On and Off

To add a shape to a field:

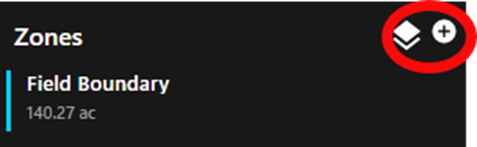

1.       Select the field, then in the Zones area click the plus icon + icon to add a shape, as shown in the following figure. The shapes menu displays.

Figure: Plus Icon

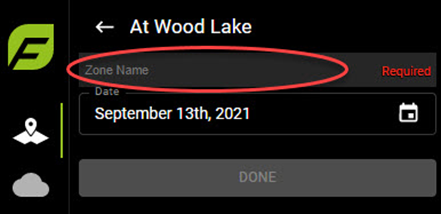

2.       Enter the name the shape, as shown in the following figure.

Figure: Shape Name

3.       Click a polygon shape from the tools menu from the right side of the screen, as shown in the following figure.

Figure: Shapes Toolbar

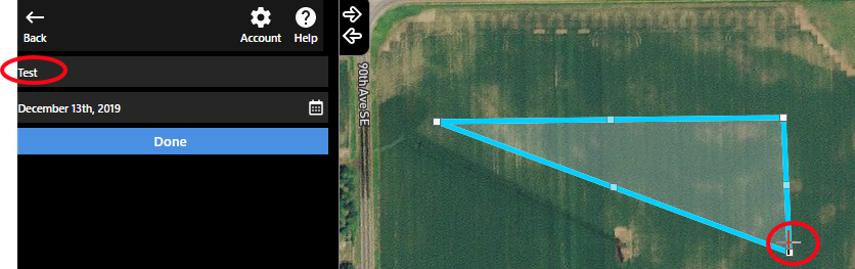

4.       Use the cross hairs to draw the shape, as shown in the following figure. Enter the name in the Zone Name area.

Figure: Crosshairs

5.       Click Done when complete. The new layer displays in Zones, as shown in the following figure.

Figure: New Shape Annotation

To edit the field boundary:



1.       Select the field, then in the Zones area click Field Boundary, the click the Edit icon, as shown in the following figure.

Figure: Edit Field Boundary

2.       Edit any details you want for the field such as name or address. Click and drag the field boundary to edit the shape, as shown in the following figure.

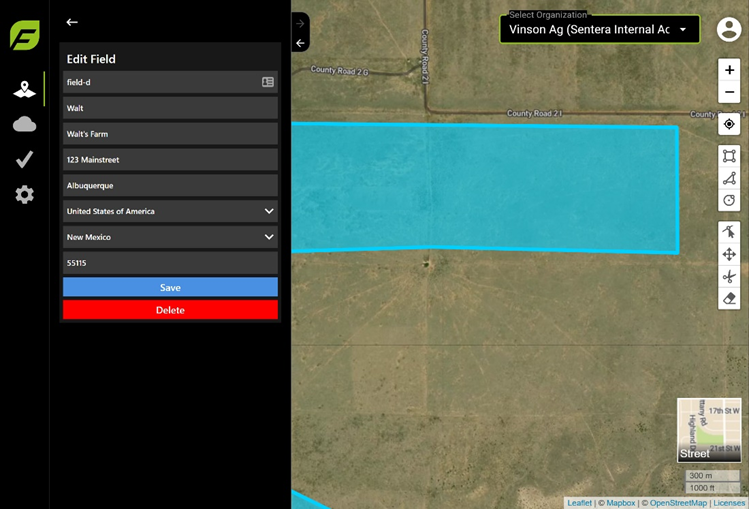

Figure: Edit Field

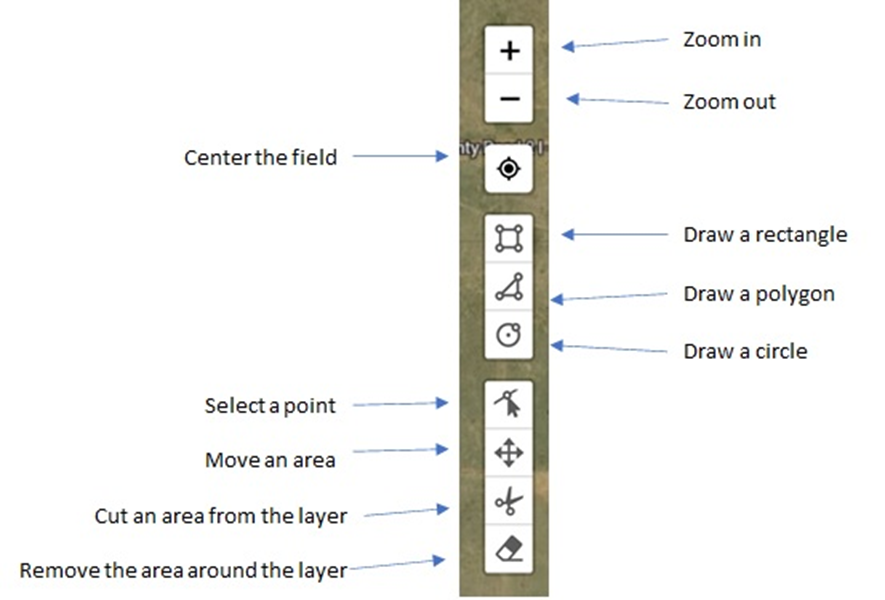

3.       Use the toolbar to adjust the field, as shown in the following figure.

Figure: Toolbar

4.       Click Finish next to the Edit icon, and then click Done when the changes are complete, as shown in the following figure.

Figure: Done

To delete a field:



1.       Select the field, then in the Zones area click Field Boundary, as shown in the following figure.

Figure: Field Boundary

2.       Click the Edit icon on the toolbar on the right hand side of screen, then click Delete at the bottom of the Edit Zones menu, as shown in the following figure.

Figure: Delete

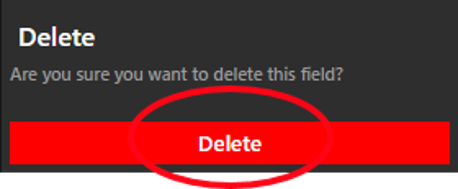

3.       Click Delete to confirm the field deletion, as shown in following figure.

Figure: Delete

Importing Images into FieldAgent Web

Once a field has been created, or already exists in FieldAgent Web App, images can be imported directly into the website instead of through the desktop.



1.       Select the field from the list of Fields that will you have images to import.

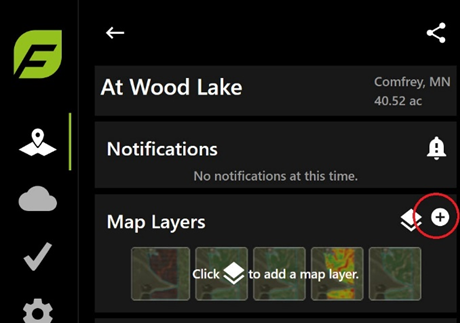

2.       From the field menu, select the + sign next to Map Layers, as shown in the following figure.

Figure: Add Map Layers

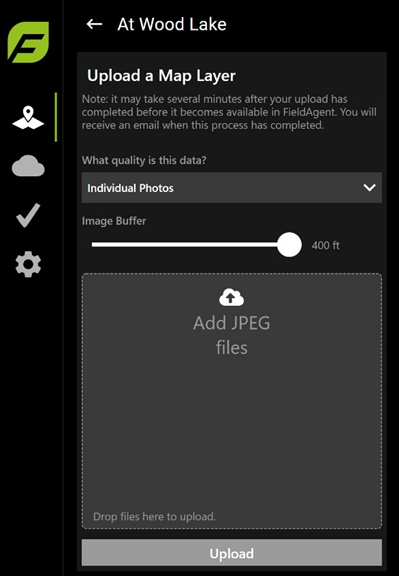

3.       Select the quality of data and then click Add JPEG files to select the images to import, as shown in the following figure.

Figure: Add JPEG Files

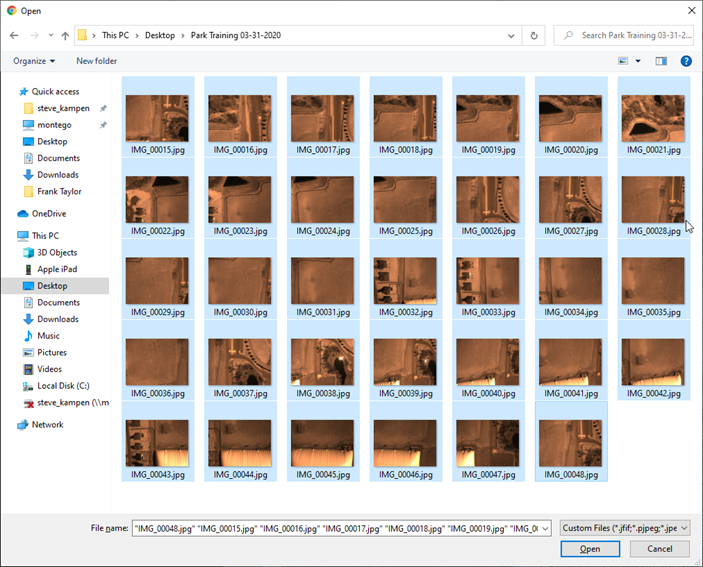

4.       Browse to the folder that contains the images. Select the images to be imported into FieldAgent Web. Click Open, as shown in the following figure. Repeat these steps for each folder that is being imported.

Note: This process is slightly different than FieldAgent Desktop where images are imported at the folder level.


Figure: Open

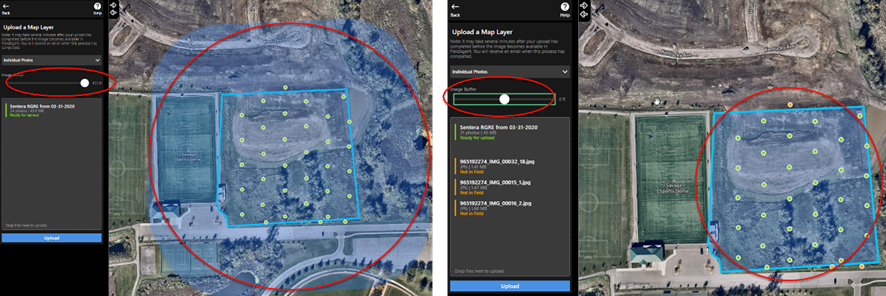

5.       Using the Image Buffer slide bar to adjust the buffer to include only those images that fit within the Field Boundary, as shown in the following figure.

Figure: Image Buffer

6.       Click Upload in the bottom left menu, as shown in the following figure. The images will start to upload to FieldAgent Web App.0

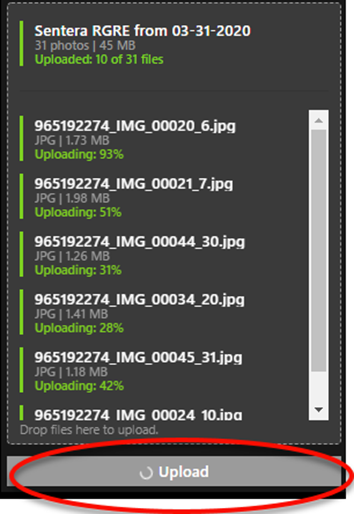

Figure: Upload

7.       Once the upload has completed, the following confirmation prompt will display, as shown in the following figure. An email confirmation will be sent shortly.

Figure: Confirmation Prompt

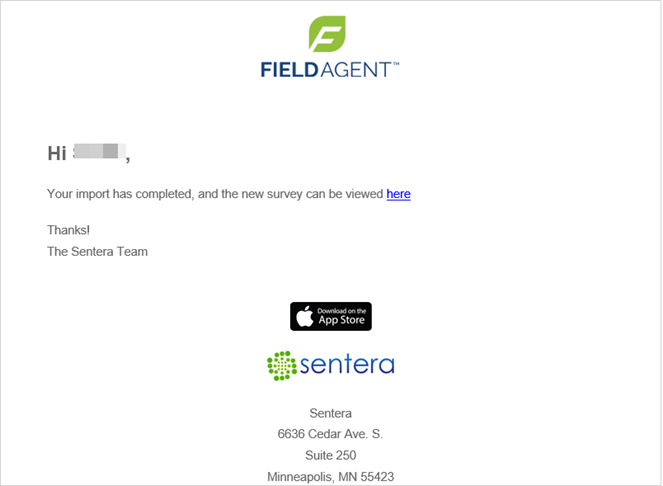

8.       Once the email is received, as shown in the following figure, you will be able to view the individual images that were imported.

Figure: Import Confirmation e-mail

Notifications

Based on your Field Activity details such as entering planting data, FieldAgent displays Notifications to help prepare, prevent, and understand potential hazards for the field. A notifications indicator will appear next to the field name, as shown in the following figure. Notifications alert to events such as plant stress or hail damage, allowing you to gather information for insurance purposes or plan a drone flight.



Figure: Notification Indicator

1.       Click the field to view the relevant notifications, as shown in the following figure. The notifications are dependent upon how accurate the information is in activity details.

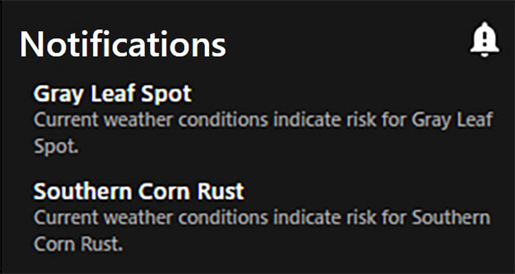

Figure: Notifications

Turn Off/On Notifications

To turn off and on disease, weather, field, NDVI, growth stage, and other notifications within FieldAgent Web:



1.       Log into your account at https://fieldagent.sentera.com/.

2.       Click the Settings gear icon.

3.       Check or uncheck the items from the Notification Preferences area, as shown the following figure.

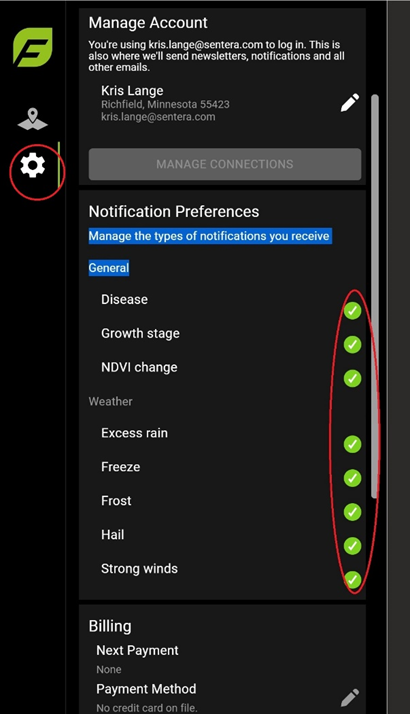

Figure: Turn Off/On Notifications

4.       Check the items from in the Notifications to turn them back on during the next planting season.

Map Layers

Map Layers allow the user to view images imported into FieldAgent Web App from the Sensor, Drone, or Satellite data. This section describes how to navigate the map layers.

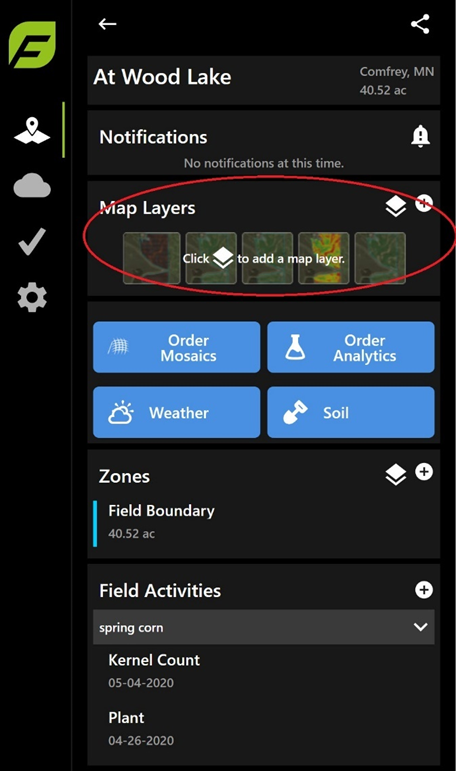

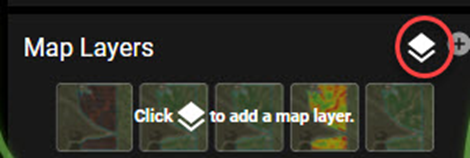

1.       Select the field, then in the Map Layers area click the Layers icon to view map layers, as shown in the following figure. The Add Map Layers window displays.

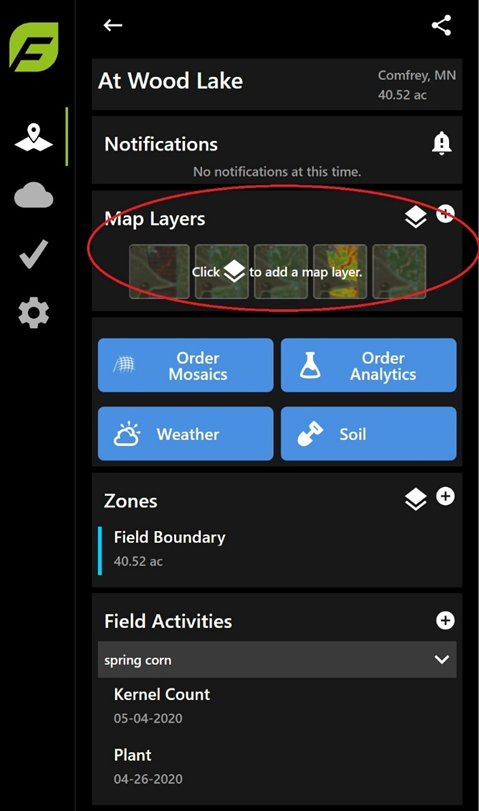

Figure: Map Layers icon

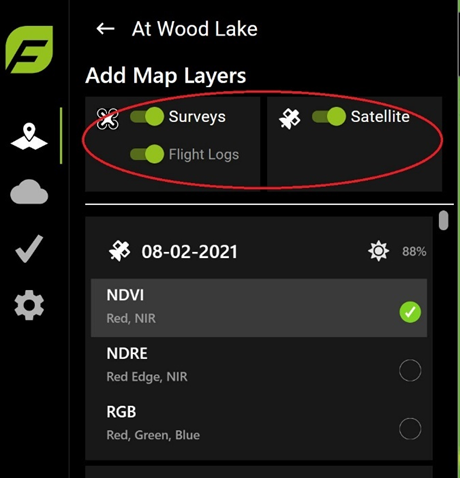

2.       Select the Surveys, Satellite, and/or Flight Logs icon(s) to view the map layers, as shown in the following figure. The Surveys icon displays images captured by the drone, the Satellite icon displays the satellite imagery, and the Flight Logs icon displays the flight paths flown.

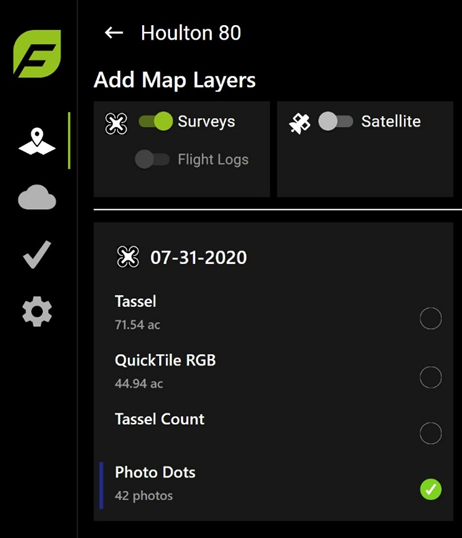

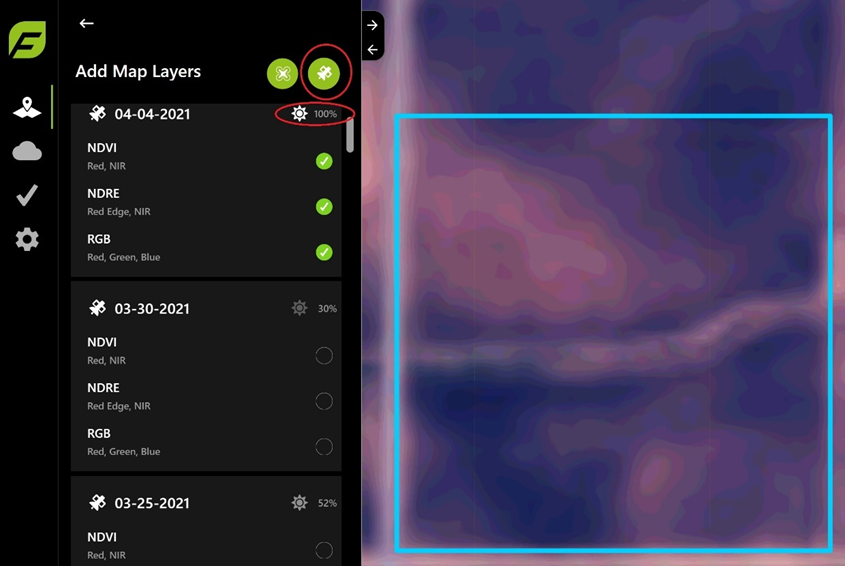

Figure: Add Map Layers

3.       Scroll to the date of the survey to view and then select the images, as shown in the following figure.

Figure: Images List

4.       Scroll to view Satellite data, as shown in the following figure.

Note: Satellite images are not taken every day and are not always usable due to cloud cover. The percentage amount next to the sun icon displays the precentage of sun on that day. In this case it is 99%.


Figure: Sun Percentage

NDVI ToolBox

The NDVI ToolBox allows the user to adjust how the data is viewed in the NDVI or NDRE images. This section describes how to adjust the images.

Drone Images

The NDVI ToolBox provides a number of details and options to work with the data from a selected image. This section describes how to view the drone images.



1.       Once the images are selected from the Map Layers, scroll to the top of the menu and click the back arrow, as shown in the following figure.

Figure: Back

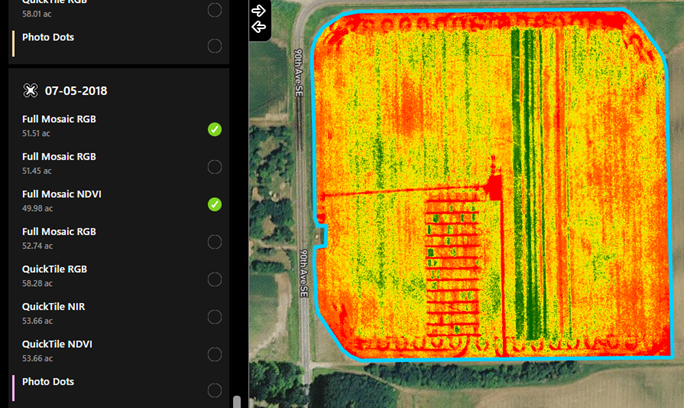

2.       Select an item in Map Layers to display, as shown in the following figure.

Figure: Map Layer

3.       To select the number of color bins to display, use the Colorization & Stats slider, as shown in the following figure. The default is 20, but can be changed from 1 to 20. The slide bar allows the user to remove data that is not relevant to the image.

Figure: Map Layer

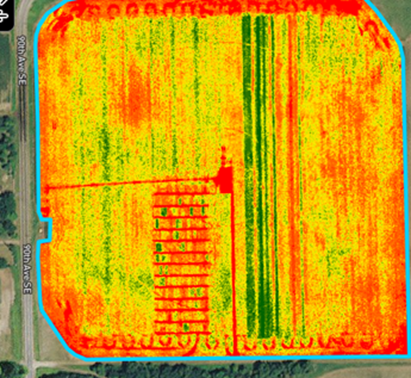

4.       Observe the map layer changes, depending upon what is selected, as shown in the following figure.

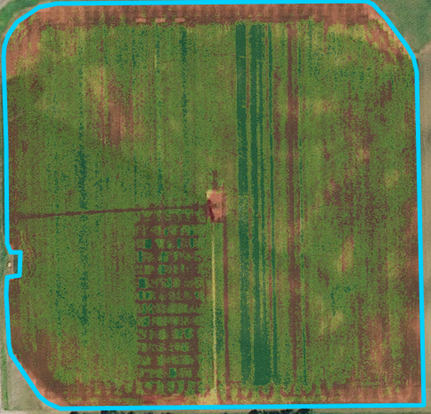

Figure: Map Image

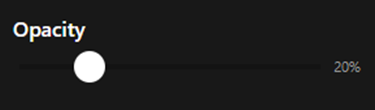

5.       Use the Opacity slider to change the ability to view the background satellite imagery through the NDVI or NDRE image, as shown in the following figure.

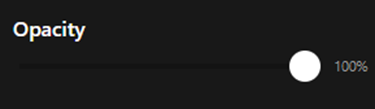

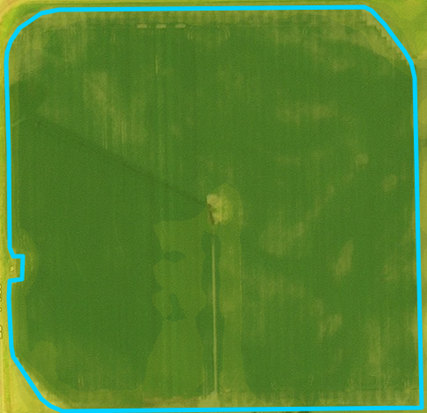

 Figure: Opacity Slider

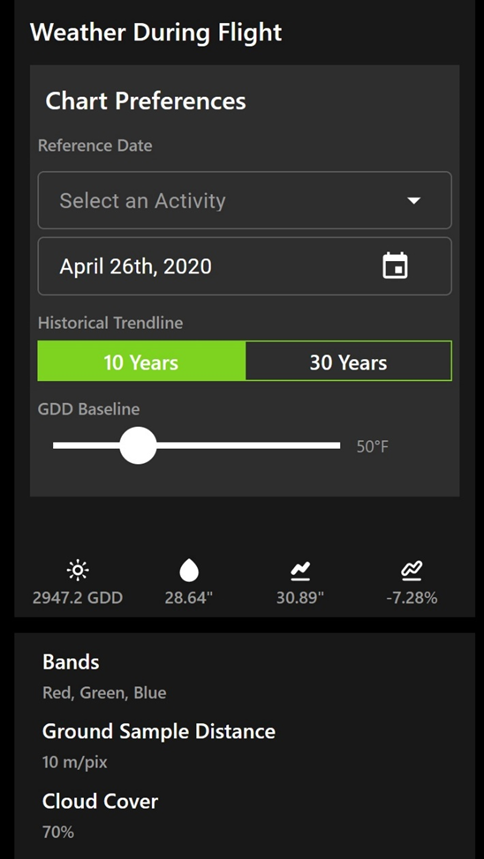

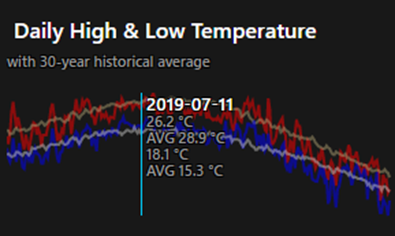

6.       Select the Reference Date, Units of Measure, and Growing Degree-Days if weather data is available for the date range of the flight, as shown in the following figure.

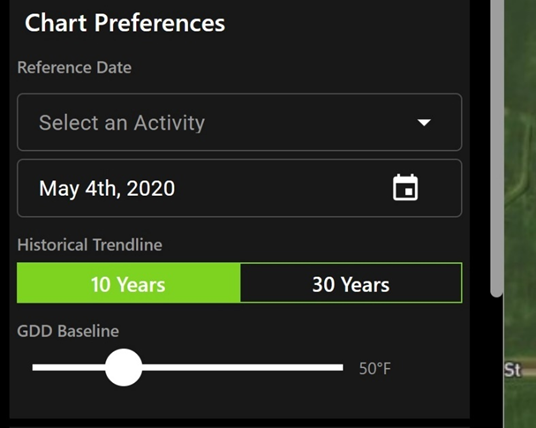

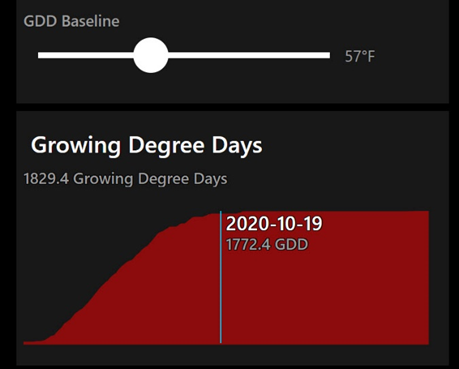

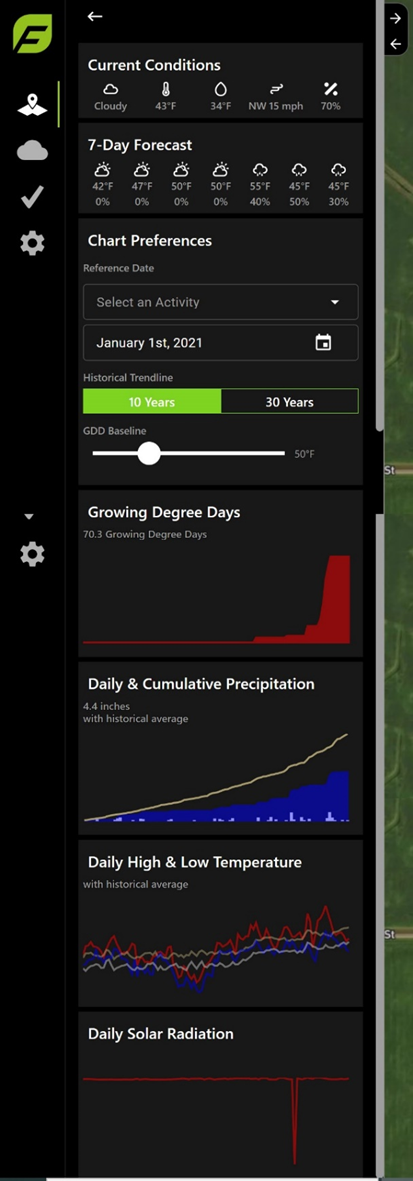

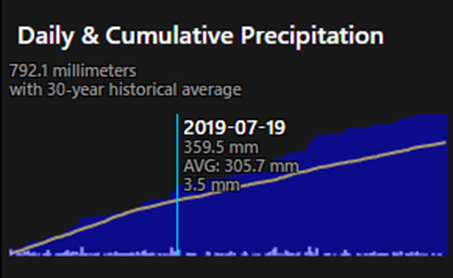

Figure: Weather During Flight

Definitions of icons include:

 Growing Degree-Day: A measure of heat accumulation used by farmers to predict when a crop will reach maturity.

 Cumulative Rainfall: Combined amount of total rainfall for any given period.

 30 Year Average Rainfall: Amount of total rainfall a 30-year period.

 Rainfall Difference Percent: Calculated percentage deviation (+ or -) for a particular time.

7.       Click the arrow to download the displayed image, as shown in the following figure.

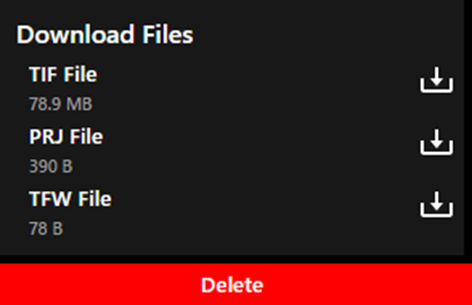

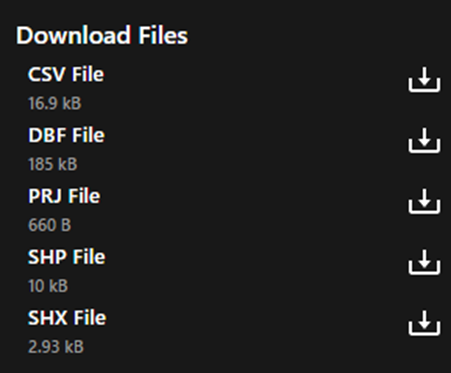

Figure: Download Files

View Sentinel-2 Satellite Images

The following section describes how to view Sentinel-2 Satellite images:



1.       Once the images are selected from Map Layers, scroll to the top of the menu and click the back arrow, as shown in the following figure.

Figure: Back

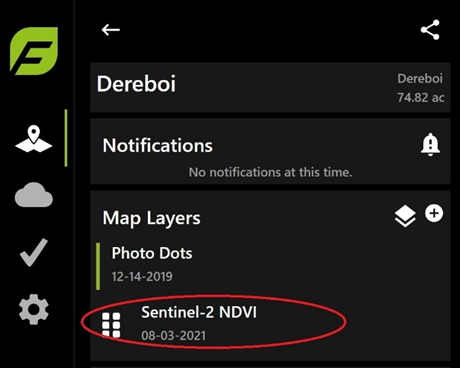

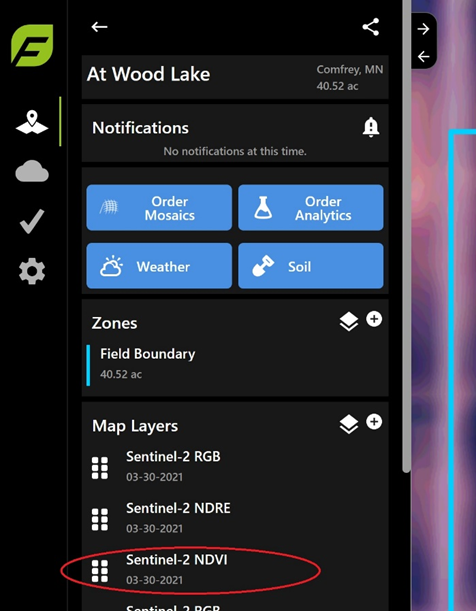

2.       Select the item in Map Layers. The map layer displays, as shown in the following figure.

Figure: Map Layers

3.       Slide the Sentinel Colorization & Stats slider to chose the number of color bins to display, as shown in the following figure. The default is 20 and can be changed from 1 to 20. The slider bar allows the user to remove data that is not relevant to the image.

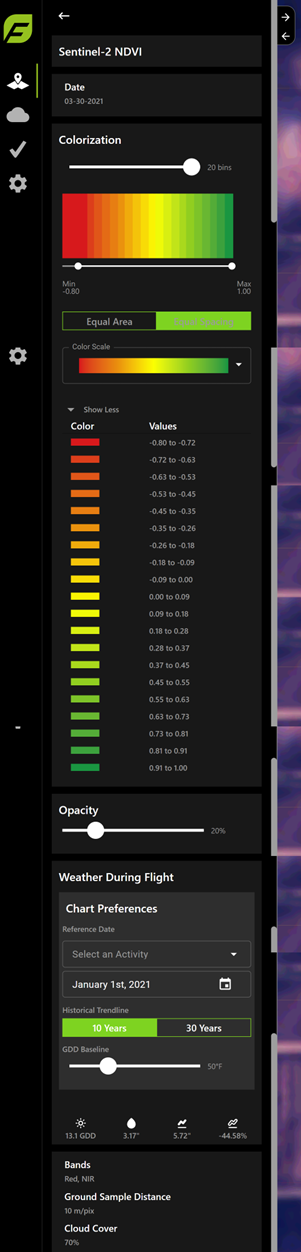

Figure: Sentinel Colorization & Stats
4.       Slide the Opacity slider to change the view to see the background satellite imagery through the NDVI or NDRE image, as shown in the following figure.



  Figure: Opacity

5.       Select the Reference Date, Units of Measure, and Growing Degree-Days if weather data is available for the date range of the flight, as shown in the following figure.

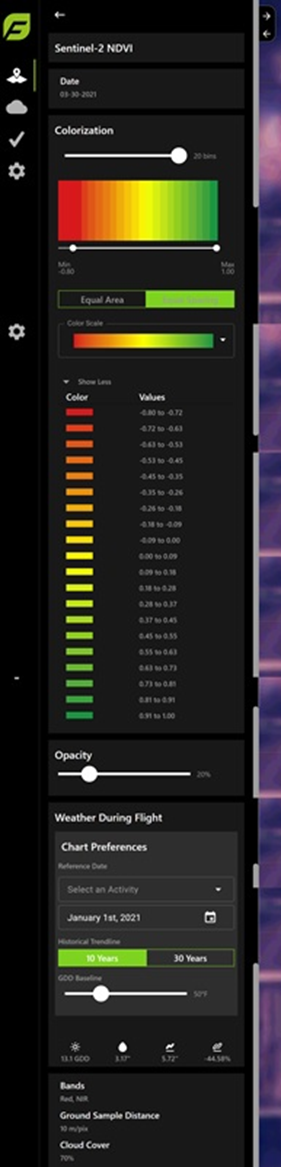

Figure: Weather During Flight

 Definitions of icons include:

 Growing Degree-Day: A measure of heat accumulation used by farmers to predict when a crop will reach maturity.

 Cumulative Rainfall: Combined amount of total rainfall for any given period.

 30 Year Average Rainfall: Amount of total rainfall a 30-year period.

 Rainfall Difference Percent: Calculated percentage deviation (+ or -) for a particular time.

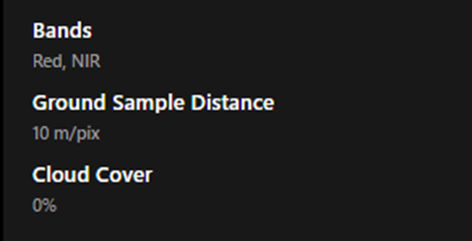

6.       Review details about the image at the end of the Satellite NDVI ToolBox menu, as shown in the following figure. Include Bands, the GSD, and Percent of Cloud Coverage that day.

Figure: Image Details

How to Order Analytics

Plant and Weed Population Maps provide detail on the rate of emergence and weed location. With emergence data one can determine a number of items relating to seed effectiveness to yield estimation.



1.       Select a field, then from the Map Layers area, click the layers icon, as shown in the following figure, to view map layers. The Add Map Layers window displays.

Figure: Map Layers icon

2.       Select the Drone, Satellite, and/or Flight Logs icon(s) to view the map layers, as shown in the following figure. The Drone icon displays images captured by the drone, the Satellite icon displays the satellite imagery, and the Flight Logs icon displays the fight path taken.

Figure: Add Map Layers

3.       Scroll to the date of the survey to view and then select the images, as shown in the following figure. The population per acre is displayed both numerically and visually.

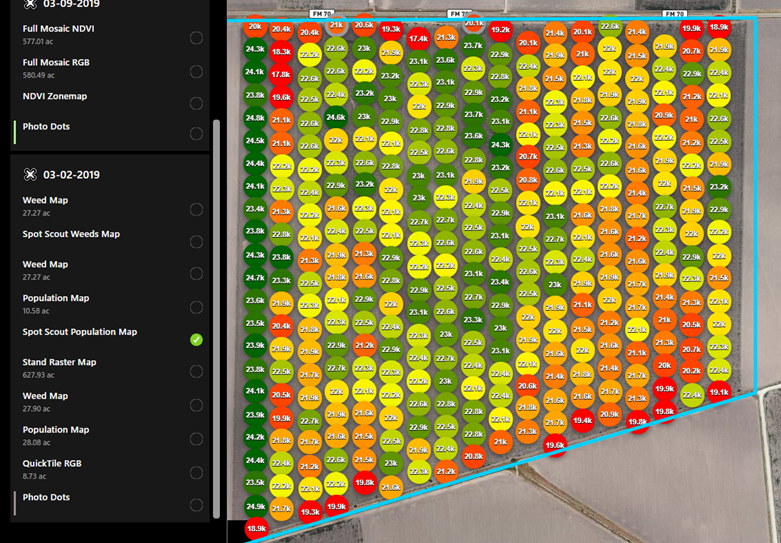

Figure: Spot Scout Population Map

4.       To complete a more detailed analysis, click back arrow at the top of the menu, as shown in the following figure.

Figure: Back Arrow

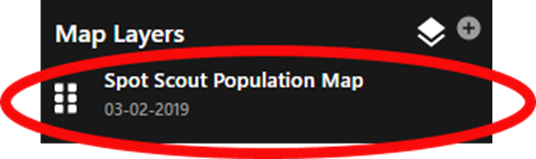

5.       From the Map Layers menu, select Spot Scout Population Map, as shown in the following figure.

Figure: Map Layers

6.       The details of the Spot Scout Population Map are listed in the menu, as shown in the following figure.

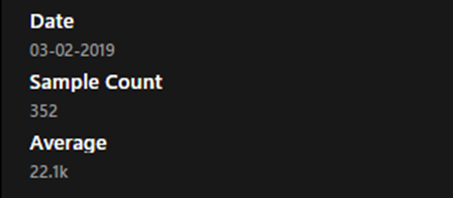

Date: The survey collection date

Sample Count: The number of images used for this data set.

Average: The calculated average per acre.



Figure 58: Population Details

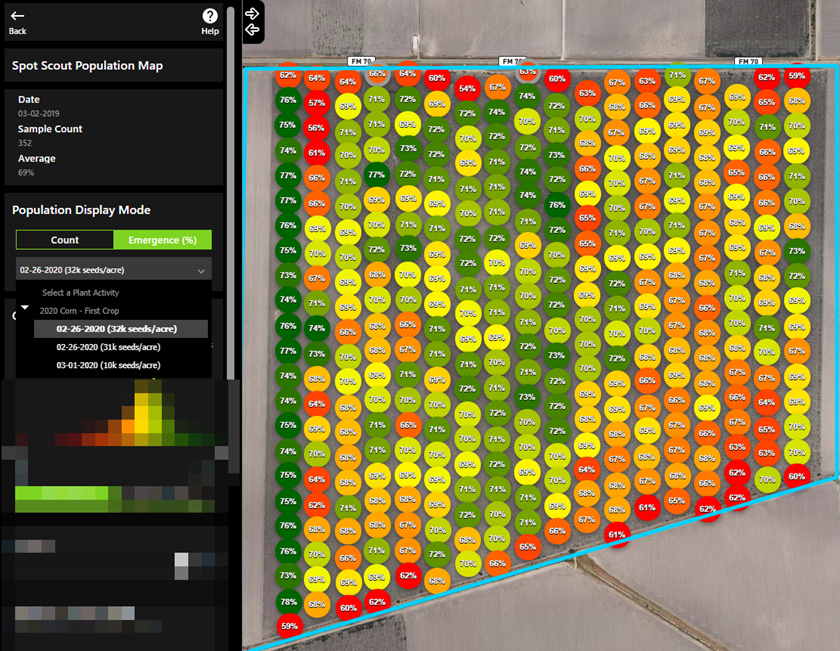

7.       To change the Population Display Mode, select either Current or Emergence (%). The Emergence (%) will open a drop-down menu to select an Activity Date. This will change the map to display a percentage of emergence instead of a stand count, as shown in the following figure.

Figure: Emergence Percent

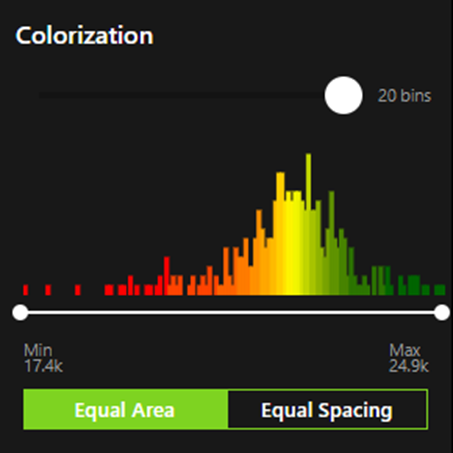

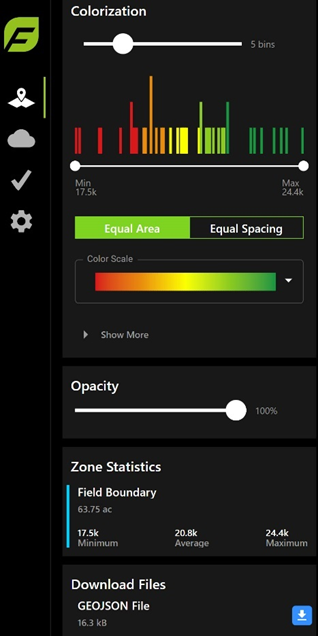

8.       Colorization allows the user to select the number colors to be used to represent the population. The default is 20. It can display as small as two. The option to use Equal Spacing or Equal Area is also available, as shown in the following figure.

Figure: Colorization

9.       Use the Opacity slider to change the ability to view the background satellite imagery through the population map.

10.   The details of the stand count can be exported. This includes a .csv file with each image listed and the data size associated with that image, as shown in the following figure. The user can also export the population map as a .shp file.

Figure: File Downloads

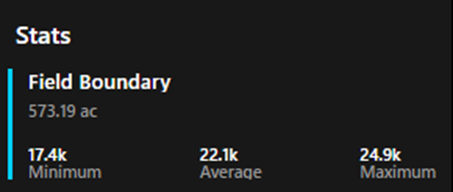

11.   Stats show the field size in acres and the minimum, average, and maximum values for the fields, as shown in the following figure.

Figure: Stats

Tassel Count Map

The user can view tassel counts which provide detail on the number of tassels at a location. With tassel data, one can determine a number of items relating to tassels to yield estimation.



1.       Select the field from the field list.

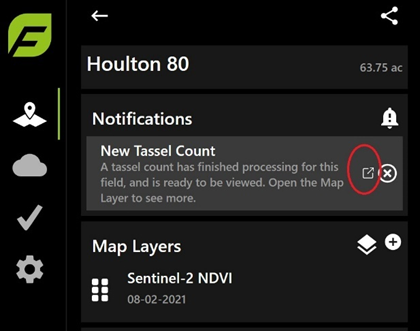

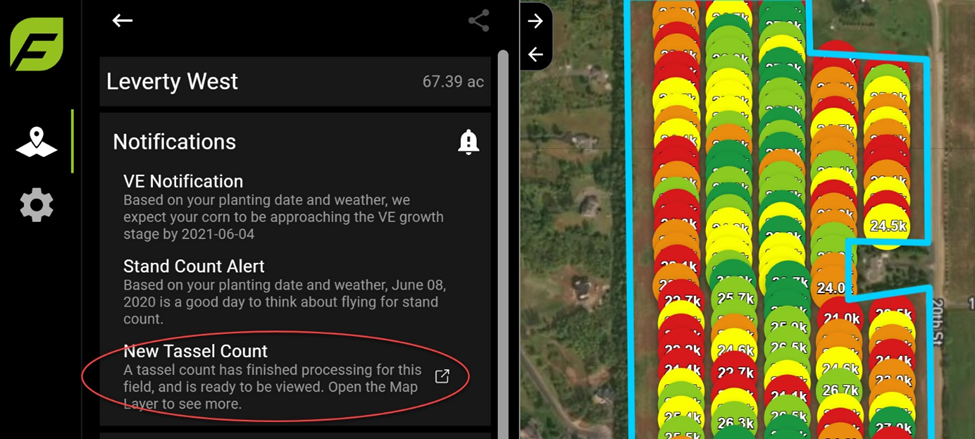

2.       From Notifications, launch the Map Layers in a new window by clicking the launch icon, as shown in the following figure.

Figure: Map Layer Launch Icon

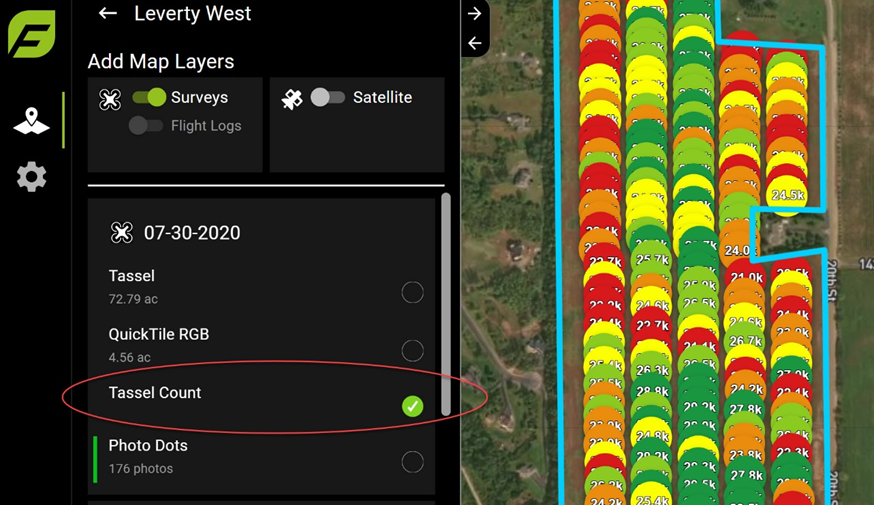

3.       The Tassel Count Details map displays, as shown in the following figure.

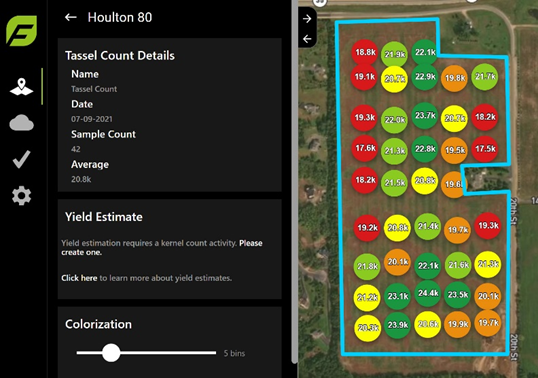

Figure: Tassel Count Map

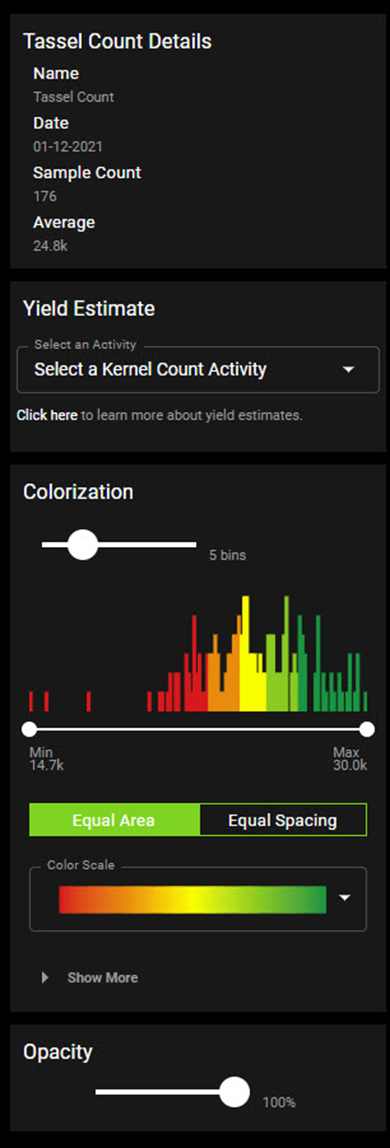

4.       Colorization allows the user to select the number colors to be used to represent the tassels, as shown in the following figure. The option to use Equal Spacing or Equal Area is also available.

Figure: Colorization

5.       Assign different colors by sliding the Color Scale.

6.       Use the Opacity slider to change the ability to view the background satellite imagery through the NDVI or NDRE image.

7.       From the Download Files area, click the arrow to download the displayed image, which may include GEOJSON files.

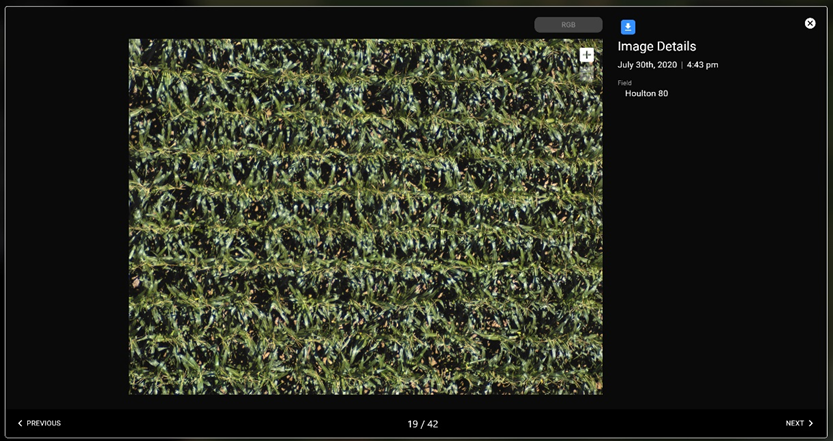

8.       Click on a photo dot to view image details, as shown in the following figure.

Figure: Image Details

9.       Navigate from one image to another by using Previous and Next arrows at the bottom of the window.

10.   Zoom in for greater detail by clicking the + icon at the top right of the image.

11.   Click the download button at the top of the window to download the image to your desktop.

Kernel Count

The user can enter kernel counts which is used to calculate bushels per acre yield estimate for the field.

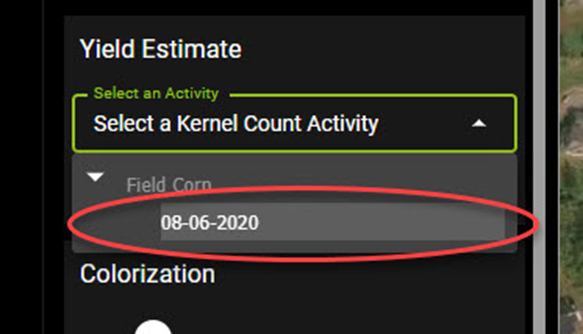

1.       After the field was flown and processed for a tassel count, a notification displays that a new tassel count is available for viewing, as shown in the following figure.

Figure: Tassel Count Notification

2.       Select Kernel Count from the Activity Type in the New Field Activity area.

3.       Select the date the count occurs.

4.       With an ear of corn in your hand, count the number of rows of kernels the ear has and the number of kernels with in a row. Enter the information, as shown in the following figure


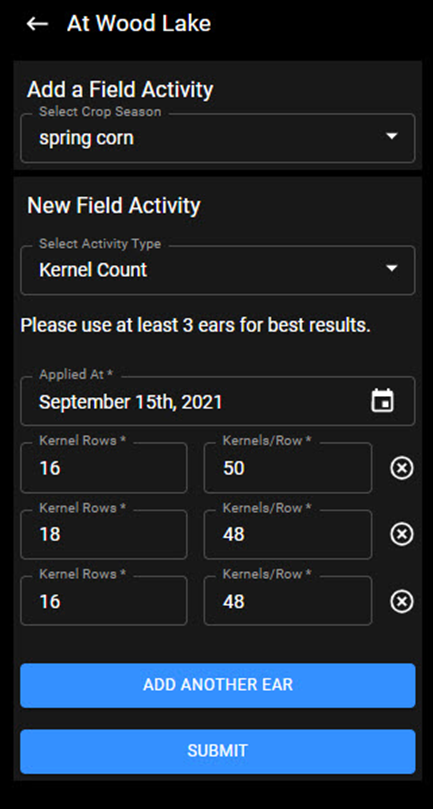

Figure: Kernel Counts

5.       Repeat this for several ears, three or more, to determine a more accurate bushel count.

6.       Click Submit.

7.       From Map Layers, select the plus layers icon to add the tassel count layer, as shown in the following figure.

Figure: Map Layers

8.       From the Add Map Layers area, scroll to the date of the survey and then select the Tassel Count analytic, as shown in the following figure.

Figure: Add Map Layer

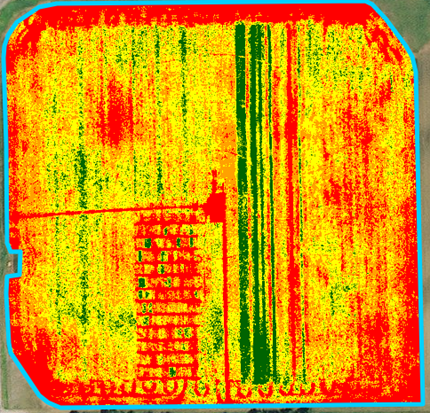

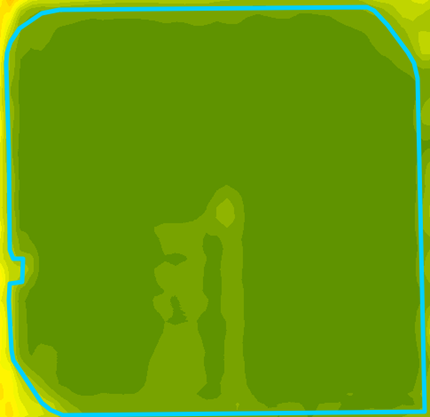

9.       Click on Tassel Count and it will displays the Tassel Count Details, as shown in the following figure.

Figure: Tassel Count Details

10.   From the Yield Estimate area, select a kernel count activity, as shown in the following figure.

Figure: Kernel Count Activity

11.   The number of bushels per acre displays in the Yield Estimate area, as shown in the following figure.


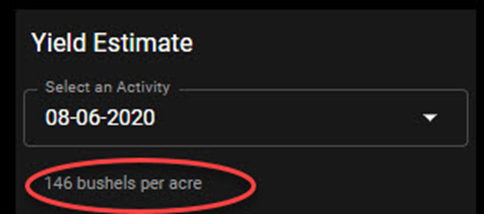

Figure: Yield Estimate

Import Images

The user can import images taken with the Sentera Double 4K and Double 4K Skyport sensors that firmware version 1.0 or higher, and users with the March 2020 firmware update.



1.       Select the field images from the field list to import. See Section 4.3.2 to import images.

Note: Once you import imagery to a field that is not in your home organization, but it is in a partner organization or another part of the hierarchy, you can share the field to yourself, which enables you to see mosaics and tassel counts ordered and produce PDF reports.

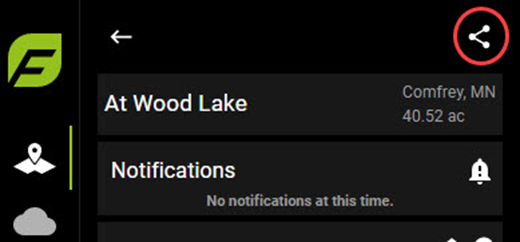

2.       Click the Share icon at the top of the menu, as shown in the following figure.

Figure: Share

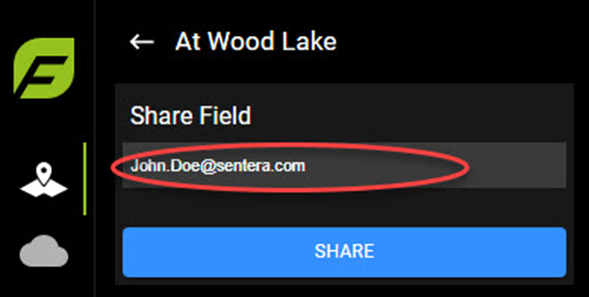

3.       Enter the email address to share to, as shown in the following figure. You can also share the field to yourself, at which point you can see mosaics, tassel counts, and create PDF reports.

Figure: Email

4.       Click Share. A confirmation message will display.

Order Mosaics

To order mosaics for a field:

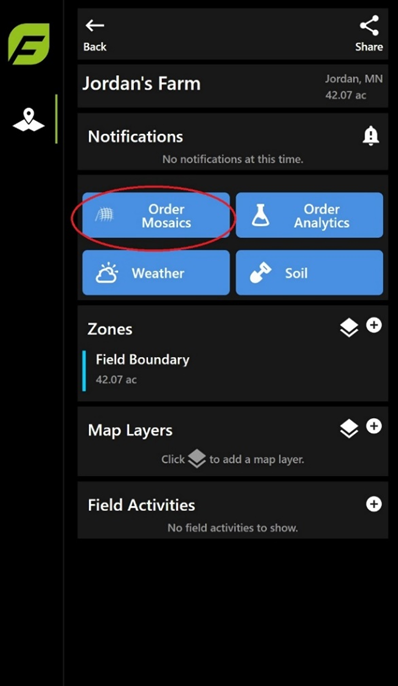

1.       Click Order Mosaics, as shown in the following figureThe Order Mosaics windows displays.

Figure: Order Mosaics

2.       Select a Survey and Image Types, as shown in the following figure.

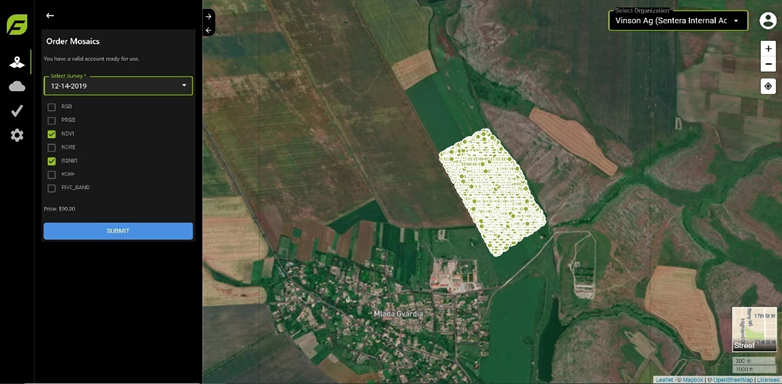

Figure: Select Survey

3.       Click Submit to purchase mosaics on the survey. The order will process and an email will be sent when the data is available.

Order Analytics

To order analytics for a field:



1.       Click Order Analytics, as shown in the following figure. The Order Analytics windows displays.

Figure: Order Analytics

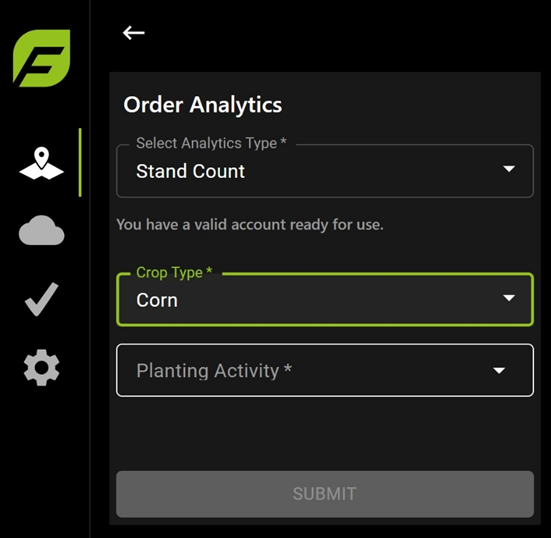

2.       Select options from the fields, as shown in the following figure.

Figure: Select Field Options

3.       Click Submit to purchase analytics on the survey. The order will process and an email will be sent when the data is available.

Weather Information

The following section describes the weather information area.

Weather Summary

FieldAgent provides aggregation weather data of field, region, country, and overall of Growing Degree Days, Rainfall, and Solar Radiation. Click the cloud icon from the left-hand side of the window, as shown in the following figure.

Note: Results will display for fields with active crop season data only.

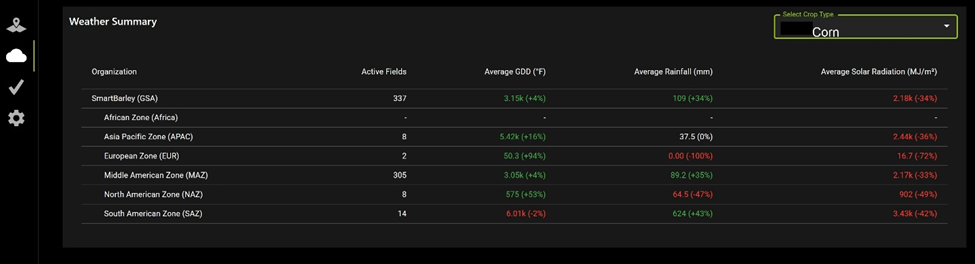

Figure: Weather Summary

Information for the previous 10 years listed includes:

·        Active Fields: The number of fields reporting weather activity.

·        Average GDD (°F): Growing Degree Days in Fahrenheit

·        Average Rainfall (mm): Amount of rainfall in millimeters

·        Average Solar Radiation (MJ/m²): NASA formula to determine the amount of solar radiation in the zone

Current and Forecasted Weather Conditions

The FieldAgent Web App can provide current, forecasted, and past weather data on each field.

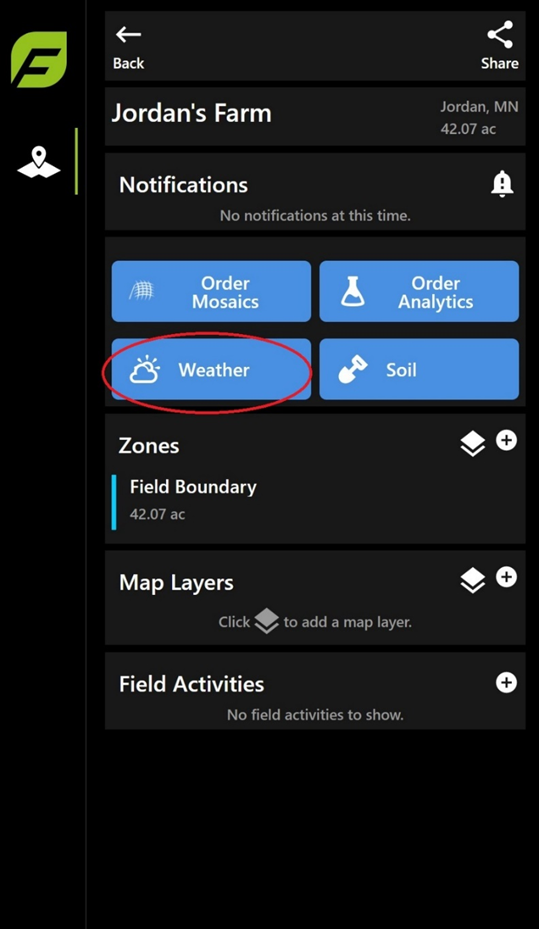

1.       Select a field and then click Weather at the bottom of the menu, as shown in the following figure. The weather menu displays.

Figure: Weather

Current and Forecasted Conditions

The following section provides the definitions on the weather conditions section, as shown in the following figure.

Figure: Weather Conditions

 Conditions: Clear, Cloudy, Rain, Snow.

 Current Temperature: Ambient temperature.

 Dewpoint: Atmospheric temperature below which water droplets begin to condense, and dew can form.

 Wind: Listed in direction and speed.

 Relative Humidity: Amount of water vapor present in air, listed as a percentage

Chart

This section describes the various charts available in FieldAgent.

Chart Preferences

Chart Preferences allow the user to set parameters for the crop and the location, such as Imperial or Metric. This section describes how to set the chart preferences:



1.       From the Chart Preferences area, set the Reference Date to the start of the growth date, as shown in the following figure.

Figure: Chart Preferences

2.       Select the historical trendline option for your preference.

3.       Use the slider bar to set your Growing Degree Days Baseline temperature.

Growing Degree Days Chart

Based on the setting provided in the Chart Preferences, the Growing Degree Days (GDD) area displays. This section describes how to set the GDD.



1.       Slide the GDD Baseline slider to select the temperature, and then move the mouse across the chart to display the date and the calculated GDD, as shown in the following figure.

Figure: Growing Degree Days

Daily & Cumulative Precipitation

Based on the date set in the Chart Preferences the Precipitation is calculated. This section describes how to set the precipitation.



1.       Move the mouse across the chart to display the Date, Cumulative, Average Cumulative, and Daily Precipitation for the field, as shown in the following figure. The white line in the following graph shows the 30 Year historical average of precipitation for the location.

Figure: Daily & Cumulative Precipitation

Daily High & Low Temperature

Starting with the reference date, the daily high is in red and the daily low is in blue. The white line in the following graph shows the 30-year average for the high and low temperatures.



1.       Move the mouse across the chart to display the high and low temperatures, as shown in the following figure.

Figure: Daily High & Low Temperature

Daily Solar Radiation

The Daily Solar Radiation window displays the net solar radiation at the crop surface measured in (MJ/m²). This section describes how to view the daily solar radiation.

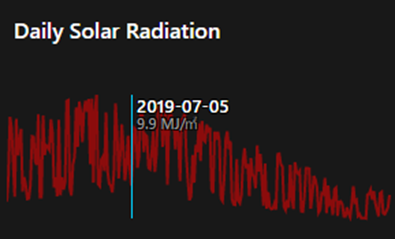

1.       Move the mouse across the chart to display the daily solar radiation levels, as shown in the following figure.

Figure: Daily Solar Radiation

Soil

The soils data that Sentera uses in FieldAgent comes from World Soil Information Service (WoSIS) supported by International Soil Reference Information Center (ISRIC). The soils data is used to help with understanding and making decisions on prescriptions and planting.



1.       Select the field that soil data is needed.

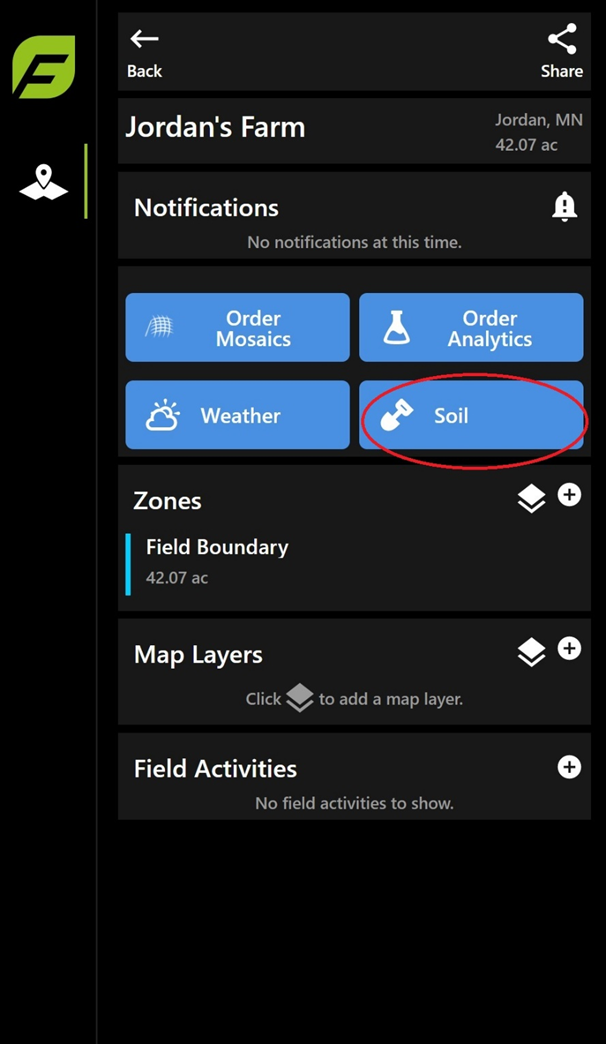

2.       Click on the Soil icon in the menu on the left side of the screen, as shown in the following figure.

Figure: Soil Icon

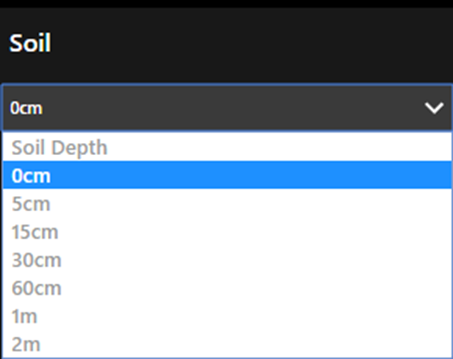

3.       Select the depth of the soil from the drop-down list, as shown in the following figure.

Figure: Soil Depth Selection

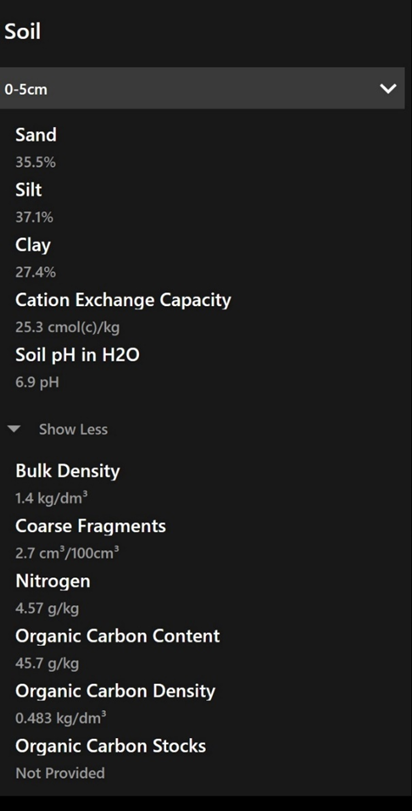

4.       The details of the soil makeup display, as shown in the following figure. The value of the soil for this location displays for 0 CM depth.

Figure: Soil Details

  1. Sand: Percentage of sand in the soil.
  2. Silt: Percentage of silt in the soil.
  3. Clay: Percentage of clay in the soil.
  4. Cation Exchange Capacity: A measure of the soil’s ability to hold positively charged ions. It is an important soil property influencing soil structure stability, nutrient availability, soil pH, and the soil’s reaction to fertilizers and other ameliorants.
  5. Soil pH in H2OA mixture, by weight, of one part soil to one part distilled H2O to determine soil acidity.
  6. Bulk Density: Weight of soil in a given volume. Soils with a bulk density higher than 1.6 g/cm3 tend to restrict root growth. Bulk density increases with compaction and tends to increase with depth. Sandy soils are more prone to high bulk density.
  7. Coarse Fragments: Particles larger than 2 mm and smaller than 25 cm in diameter.
  8. NitrogenThe most abundant element in the atmosphere and is usually the most limiting crop nutrient.
  9. Organic Carbon ContentTends to be concentrated in the topsoil. Topsoil ranges from 0.5 – 3.0 percent organic carbon for most upland soils. Soils with less than 0.5 percent organic carbon are mostly limited to desert areas. Soils containing greater than 12 – 18 percent organic carbon are generally classified as organic soils.
  10. Organic Carbon DensityA percentage of the topsoil 0 – 10 cm.
  11. Organic Carbon StocksThe quantity of carbon contained in a reservoir or system which has the capacity to accumulate or release carbon.

Field Activities

Field Activities allows the user to document activity in the field-based on seasons. This activity can be planting or irrigation. The information leads directly to how and when the notifications are triggered.

Creating an Activity

To create an activity:



1.       Select the field that where the activity will occur.

2.       Click the + icon, as shown in the following figure, to start an activity.

Figure: Activity list

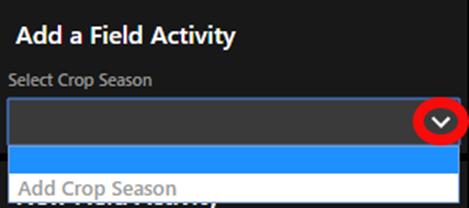

3.       Select the drop-down in Select Crop Season area, and then select Add Crop Season, as shown in the following figure.

Figure: Add Crop Season

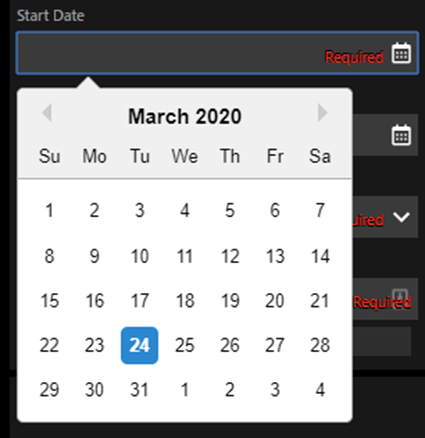

4.       Enter the Start Date and End Date , as shown in the following figure.

Figure: Start and End Calendar

5.       Select a crop type from the dropdown, as shown in the following figure.

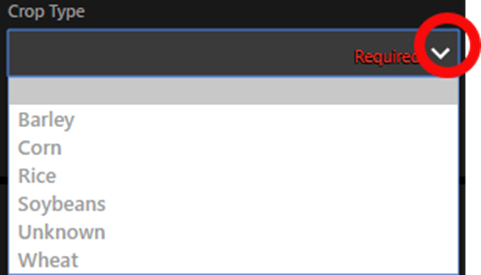

Figure: Crop Type

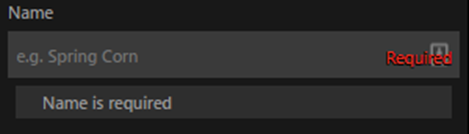

6.       Type a name for the activity, for example, Spring Corn, as shown in the following figure.

Figure: Activity Name

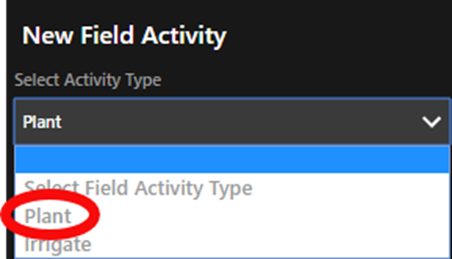

7.       Select an activity from the New Field Activity dropdown, as shown in the following figure.

Figure 96: New Field Activity

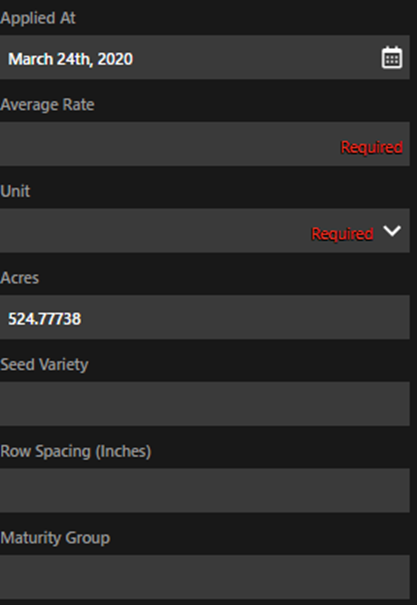

8.       Enter the details in the Plant and Irrigation Details areas, as shown in the following figures. The details will vary, depending upon the selected activity.

Average Rate: Seed rate or volume used in the field.

Unit: Unit of measure used for the rate.

Acres: Defaults based on the field shape. This can be updated.

Seed Variety: Type the seed variety used.

Row Spacing: Type the row spacing used in inches.

Maturity Group: Type in the maturity group information.

Figure: Plant Details

Applied At: The date the activity took place.

Average Rate (Gallons per acre): Enter the number of gallons used per acre.

Acres:
 Defaults based on the field shape. This can be updated.

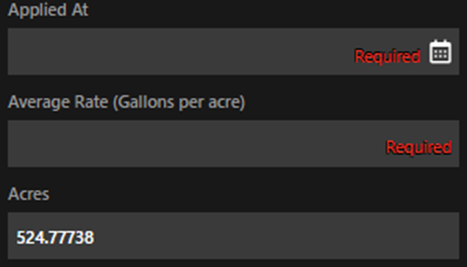

Figure: Irrigation Details

Revision History

The table below lists the revision history.


Release Number

DateRevision Description
Rev. 0December 13, 2019First Draft of FieldAgent Web User Manual
Rev. 1December 16, 2019Correct errors.
Rev. 1.1December 18, 2019Translated to Spanish, Portuguese, and French.
Rev. 1.4January 14, 2020Added Photo Import.
Rev. 1.4ABMarch 24, 2020Updated for specific user group
Rev. 1.5April 20, 2020Updated for new functions.
Rev. 1.6May 15, 2020
Added ability to draw/manage shapes for a field. Added ability to add layers to map.
Rev -March 1, 2021Added greater control with field boundaries, added notifications, weather, soil, language, and other new functions
Rev. AMay 4, 2021Added weather summary, units of measurement, languages, field toolbar, soil definitions, and updated screenshots to reflect new verbiage.
Rev. BAugust 3, 2021Added tassel count and kernel count details, access fields by organization, view flight logs in the Map Layers.
Rev. COctober, 19, 2021Updated name AGX710 to Double 4K Skyport.
Rev. DNovember 1, 2021Added Preference Notifications instructions.
Rev. EApril 14, 2021Added Web Reports.
Rev. F
September 1, 2022
Updated Branding



[END OF DOCUMENT]



    • Related Articles

    • FieldAgent Mobile - User Guide

      FieldAgent® Mobile User Guide English Engineered in Minneapolis, MN, USA April 14, 2022 Doc # 17013 Rev F Copyright © 2022. All rights reserved. Trademark Notice FieldAgent, Double 4K Skyport, and Double 4K are registered trademarks of Sentera. Other ...
    • Sentera PHX - User Guide

      Scroll to the bottom of the page to download the latest Sentera PHX Unmanned Aircraft Pilot User Guide.
    • FieldAgent Desktop - Sentera Stitching Service Install Manual

      1 Requirements for Installing 1.1 PREREQUISITES Microsoft .NET Framework 4.6.1 (x86 and x64) 1.2 SYSTEM REQUIREMENTS A 64-bit version of Windows 8/10/11 Pro [help] 32 GB of RAM Minimum of a 4 core / 8 thread CPU 500 GB free disk space Virtualization ...
    • DJI - Mavic Pro Single Sensor User Manual

      Scroll down to the bottom of the page for the User Manual for the Sentera Single Sensor mounted on a DJI Mavic Pro. This guide will give out basic instruction on Aircraft Setup, Sensor Usage, and Flight Operations. If you need additional information, ...
    • FieldAgent Desktop - User Guide

      Field Agent Desktop User Guide English Engineered in Minneapolis, MN, USA 14 April 2022 Doc #67002 Rev E Copyright © 2022. All rights reserved. Trademark Notice FieldAgent, AgVault, and Incident Light Sensor are registered trademarks of Sentera. ...
