Note: Double 4K - Skyport is formerly known as AGX710.
First, confirm that you are using a MicroSD Card of the correct size and speed.
We recommend using a class 3 (U3 ~ 100mb/s) card
Maximum Card Size Specifications:
- Single and Quad Sensors = 32 GB
- Double 4K and Skyport = 64 GB
Determining the Format of your MicroSD Card
All SD Cards used in Sentera Sensors, must be in FAT32 format.
NOTE: Most MicroSD cards of 32GB or less (USED ON THE SINGLE) are already formatted to FAT32.
To determine the current format of your MicroSD Card:
1. Insert the MicroSD card into a computer
2. Locate the MicroSD card in a finder window.

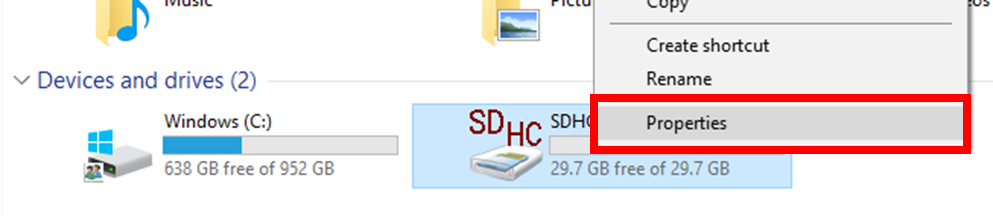

3. Right click and select properties as shown below.

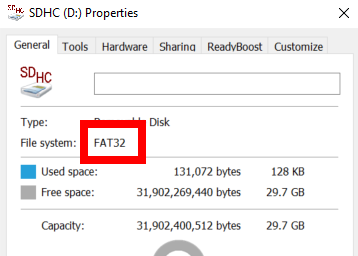

4. Check the file system for "FAT32" as shown below.
If your MicroSD Card is already formatted to FAT32, move onto the next section, Using your FAT32 MicroSD Card.
If you SD Card is not formatted to FAT32, follow the instructions detailed in the last section, Formatting an SD Card to FAT32.
Using your FAT32
1. Insert your SD Card into your Sensor and if applicable, install your sensor onto your aircraft.
2. Power on the aircraft. The Sensor will write the necessary files to the card.
- For the Sentera Single Sensor you will see Green, Yellow, and Red LED's. Please wait until the Red LED turns off.
- For the Double 4K Sensor or Skyport you will need to wait until you have a solid Green LED.
Formatting an SD Card to FAT32
If your SD Card is not formatted to FAT32, you will need to format the card using the tool below as Windows does not support the format natively.
- Software download link: FAT32 Formatter Tool

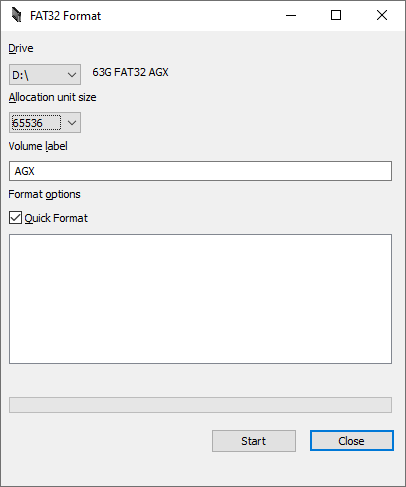

Before using the FAT32 Formatter Tool copy it to your Desktop, close Windows Explorer, then launch FAT32 Formatter.
Allocation Size for MicroSD Cards
When using the FAT32 Formatter Tool, set it to the appropriate allocation size based on card storage.
- 16 GB Cards = 16384
- 32 GB Cards = 32768
- 64 GB Cards = 65536
You can now insert the newly formatted MicroSD Card in to the Sensor and power on the aircraft. The Sensor will write the necessary files to the card.
