Field Creation

To create a new Field in FieldAgent Mobile:

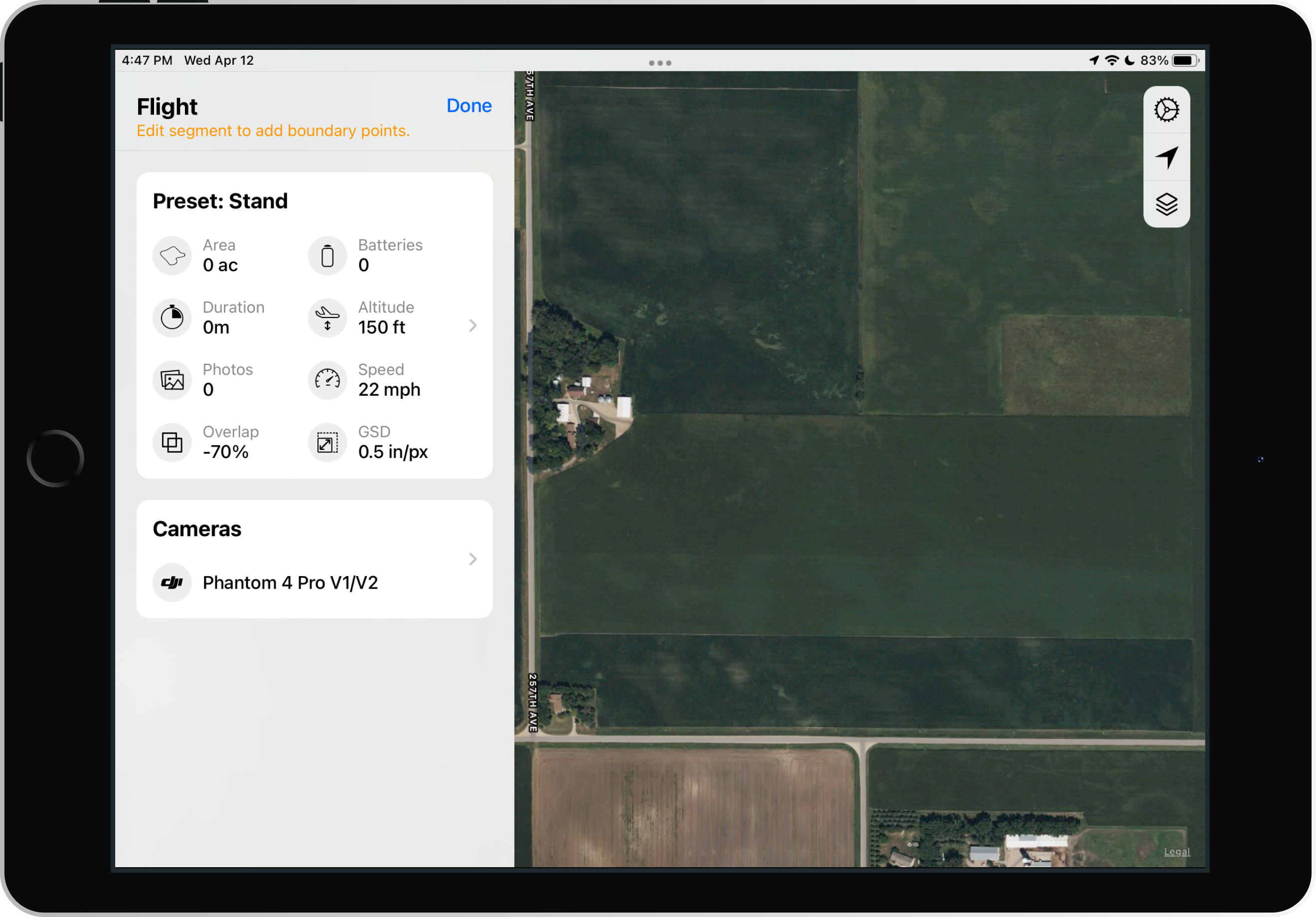

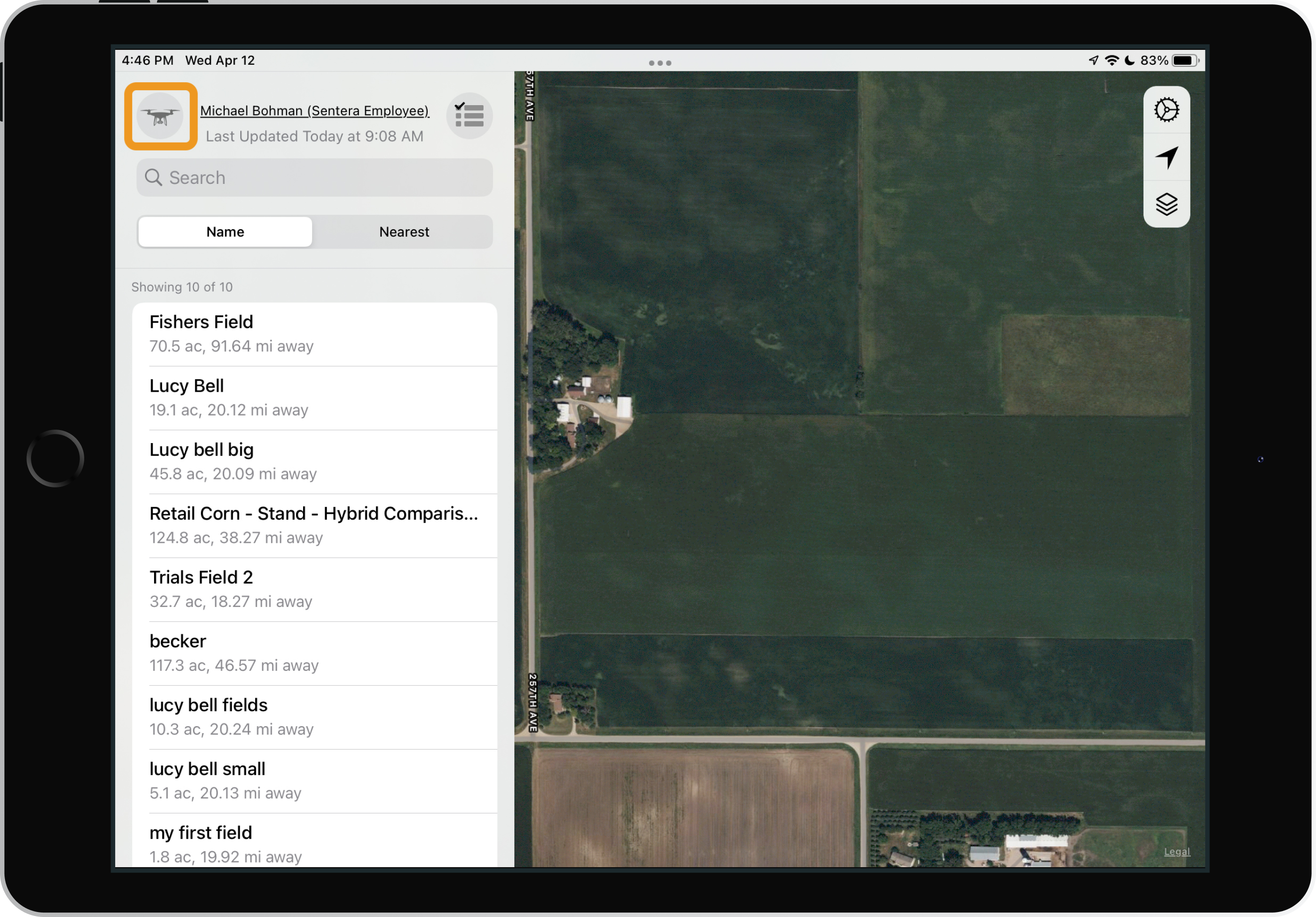

1. Navigate to the location of the field in the map view, then tap the drone icon to switch into Flight Planning mode.

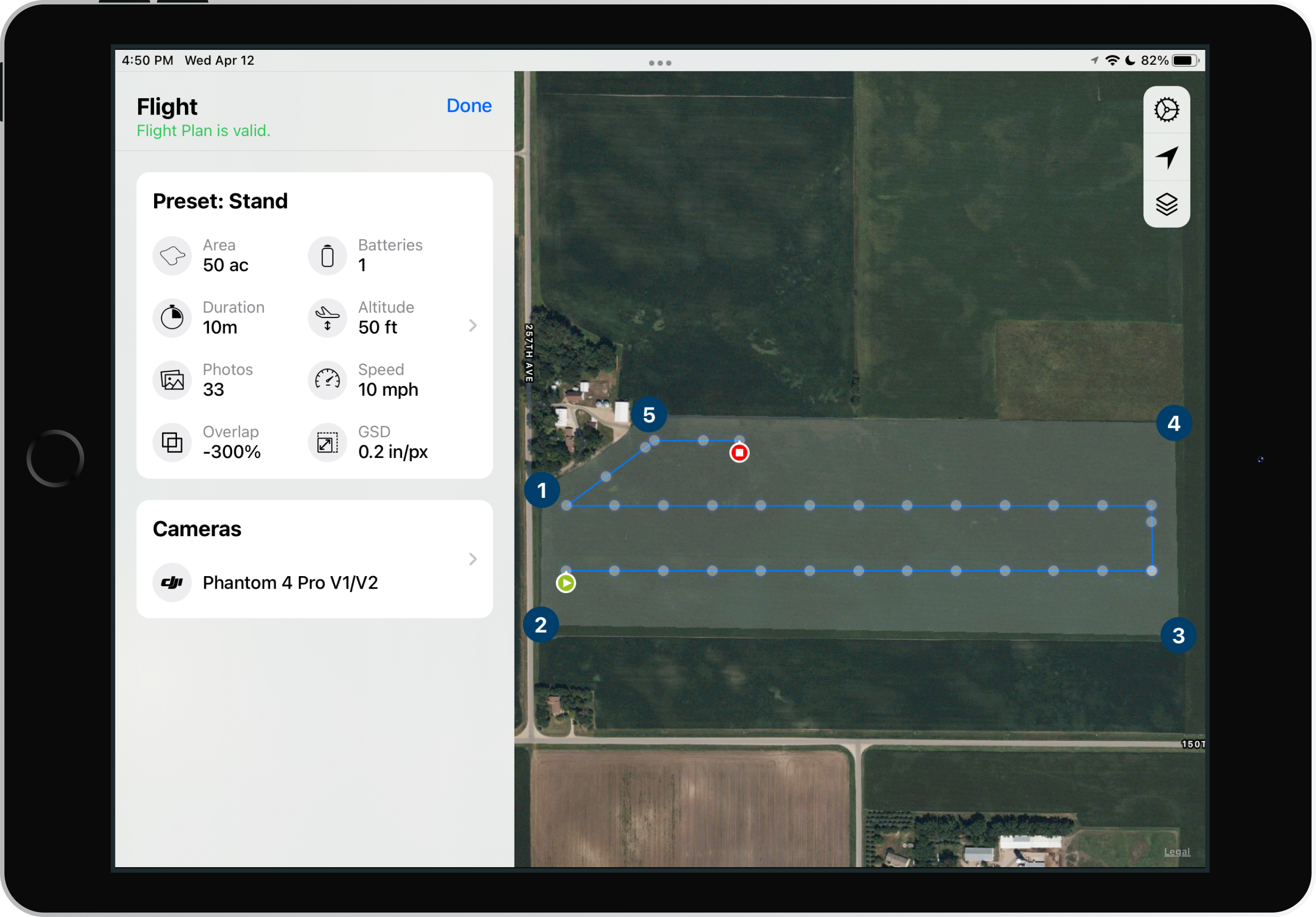

2. Long press on the map to add points to the map and define the field boundary.

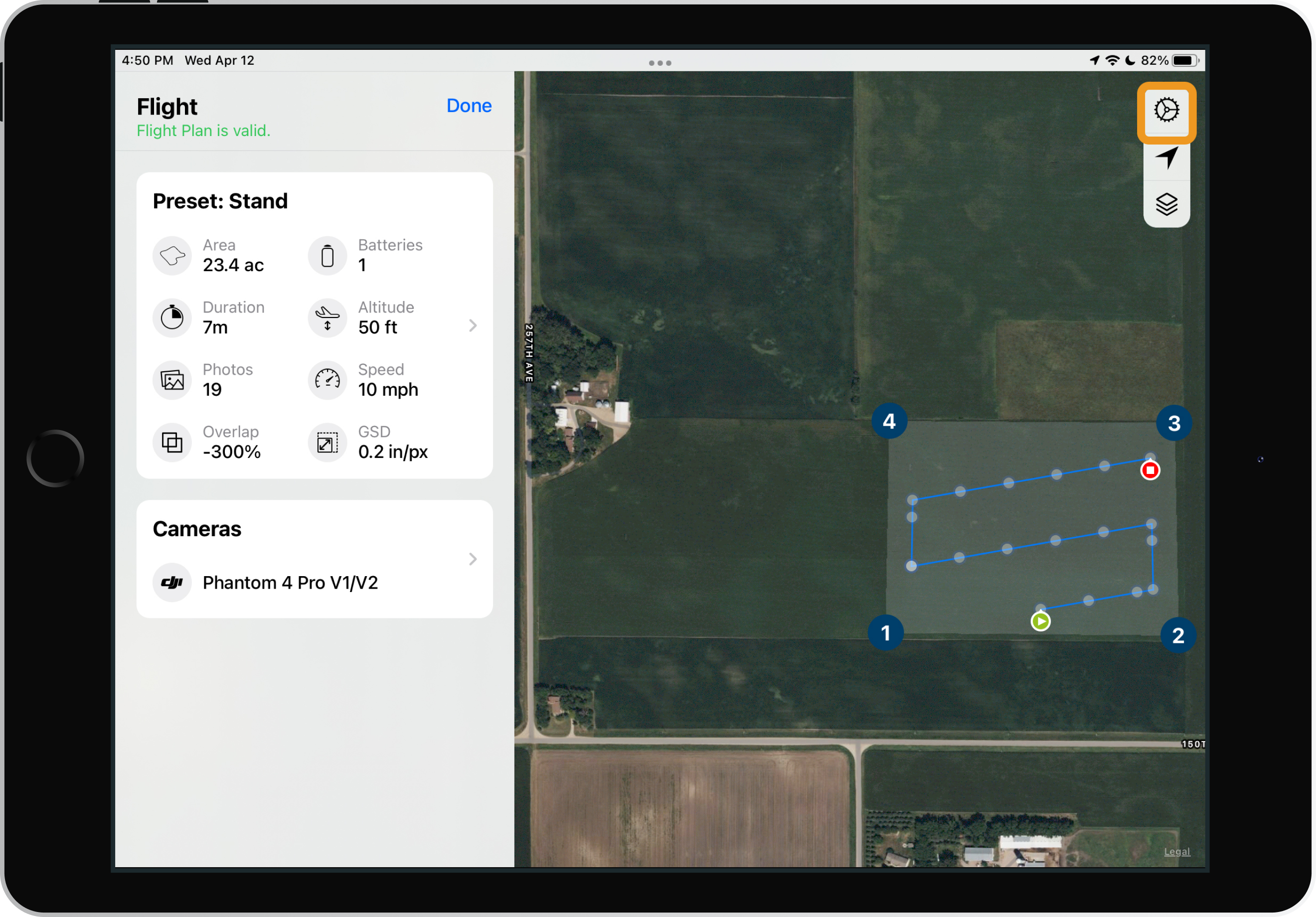

3. To save the field boundary, click the settings icon to open the settings menu.

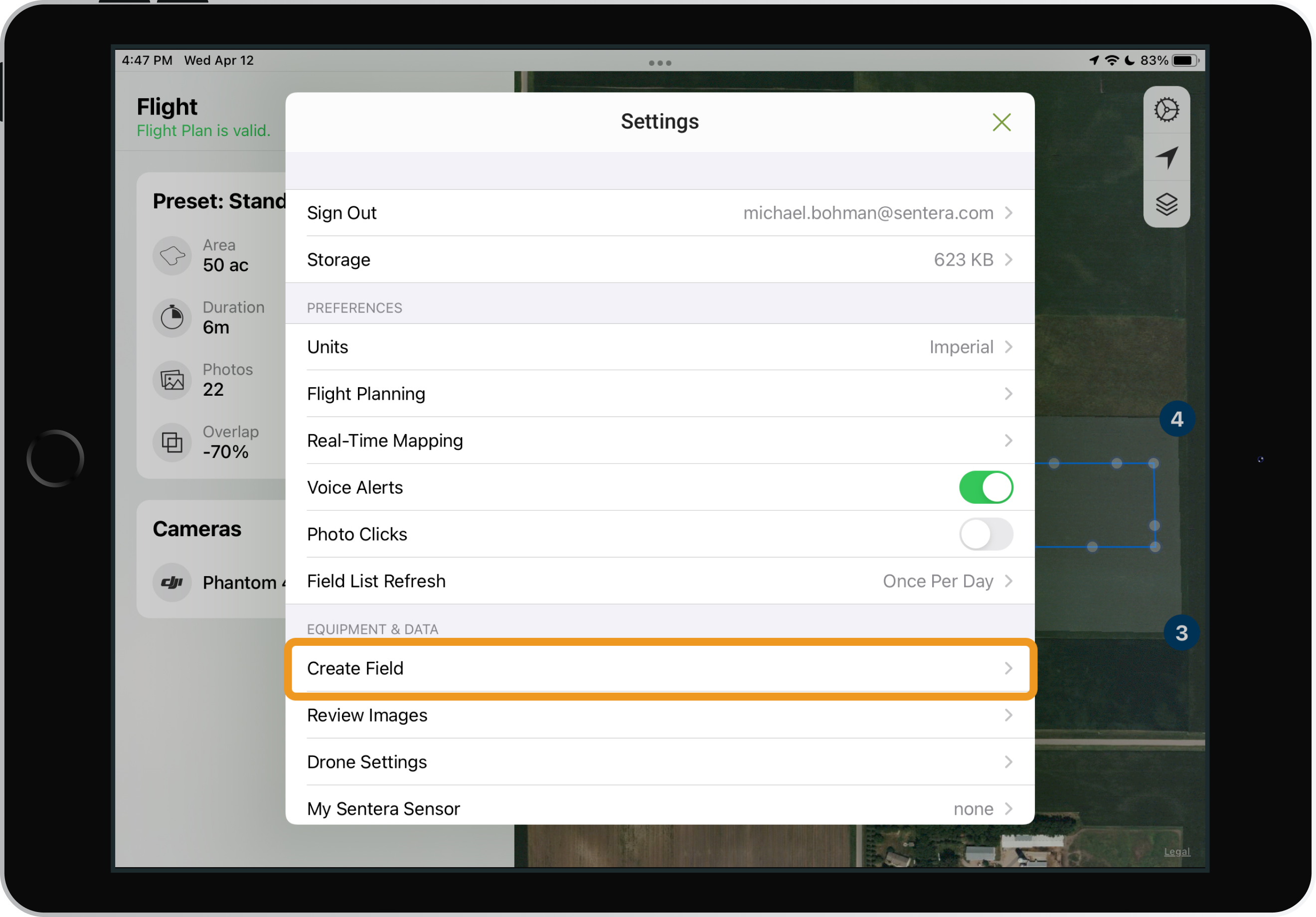

4.  Select the “Create Field” menu.

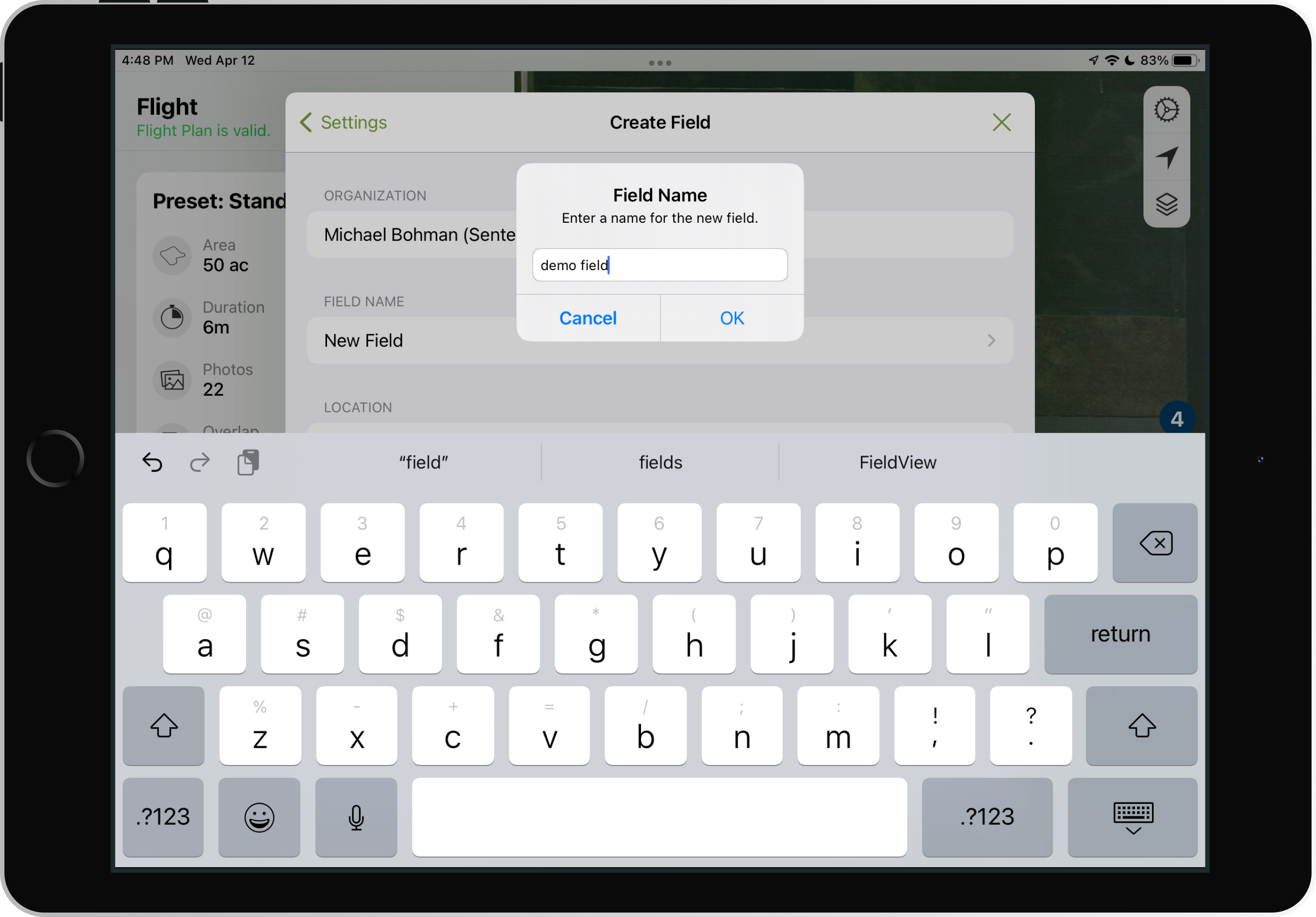

4. You will be prompted to enter a new field name. Enter the name and select “OK”.

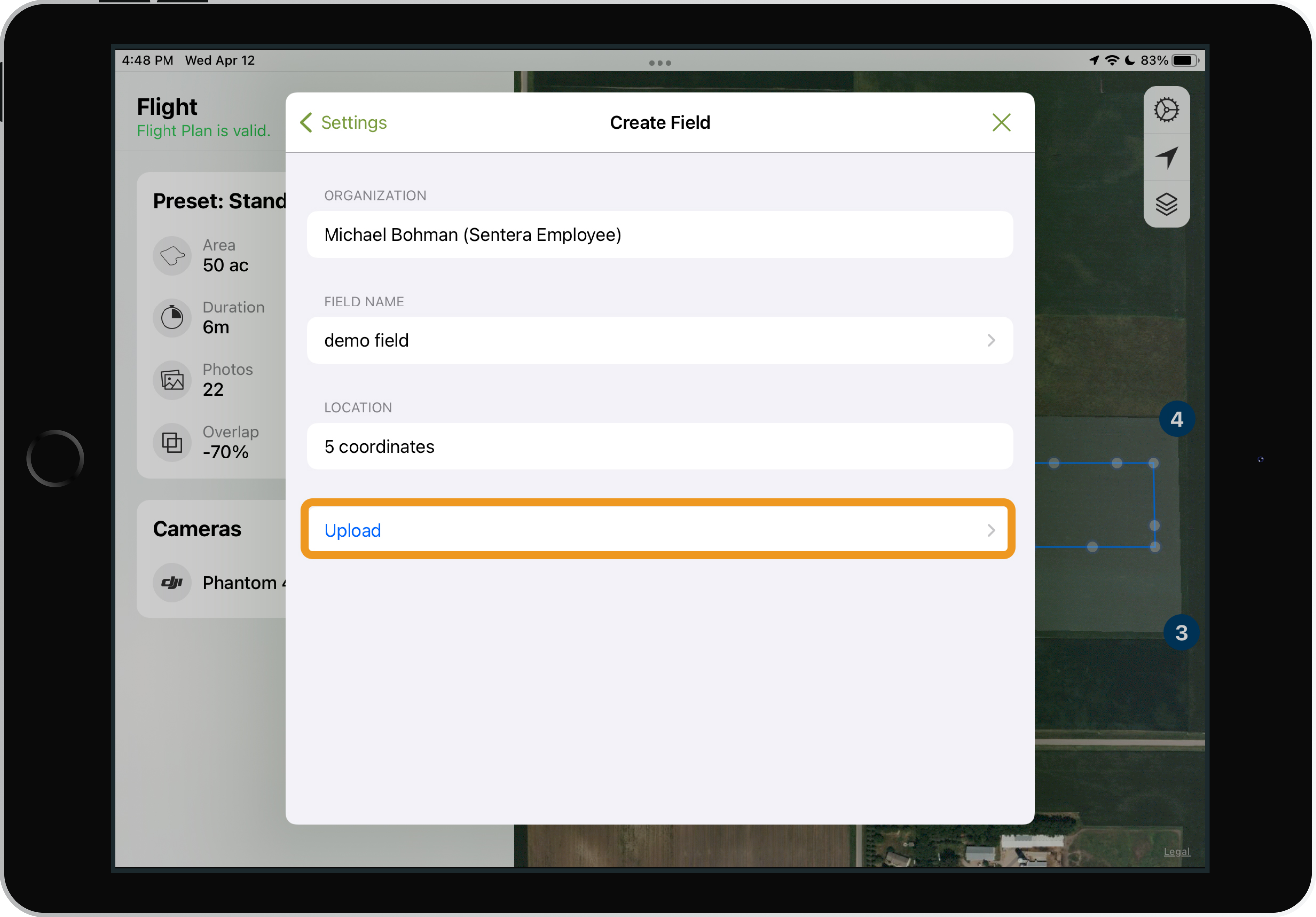

5. To save the field to FieldAgent, select “Upload."


6. When the field is uploaded, the success prompt will be displayed.

Zone Creation

To create a new Zone in FieldAgent Web:

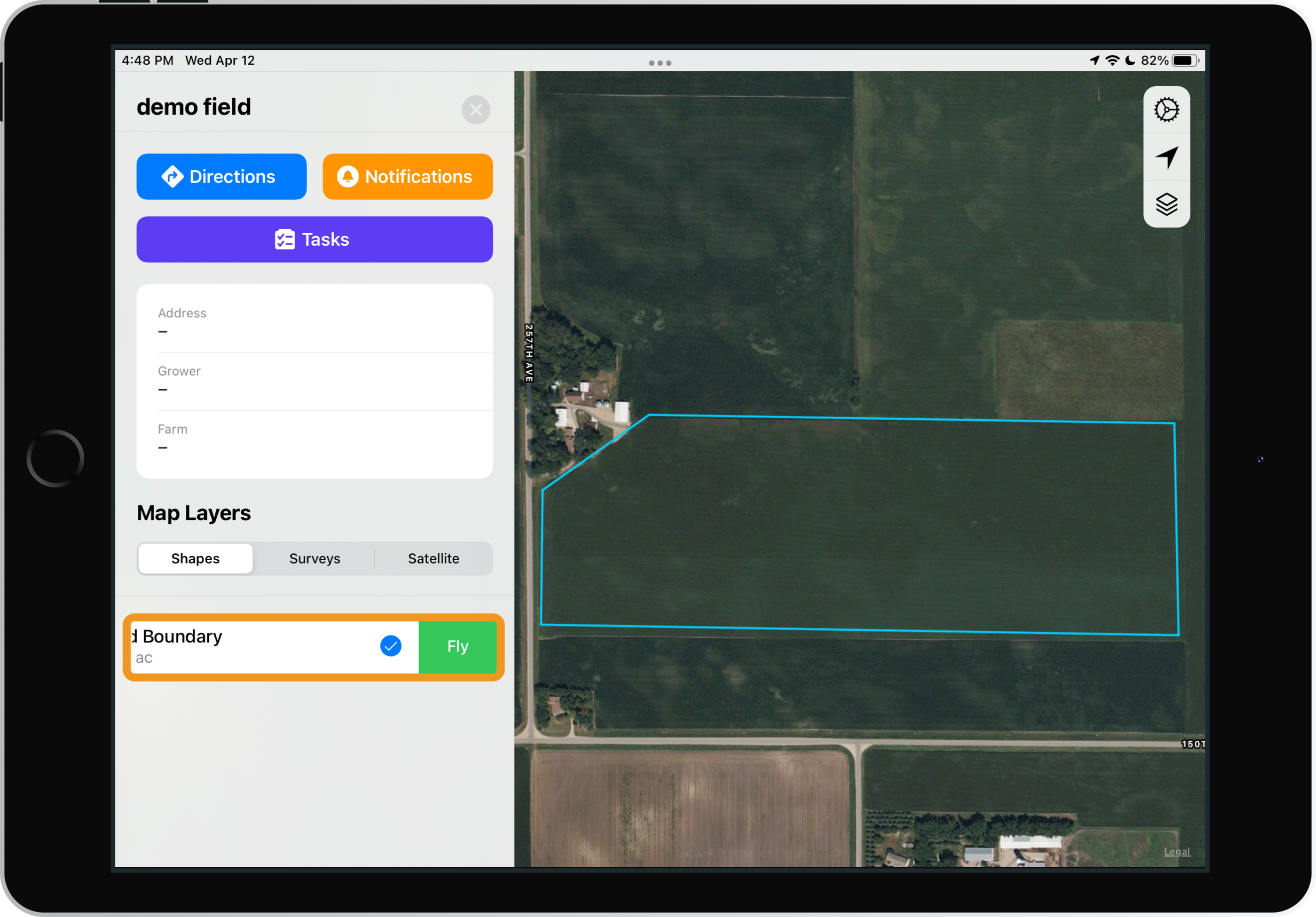

1. Navigate to the field and swipe the field boundary. Then press the fly button.

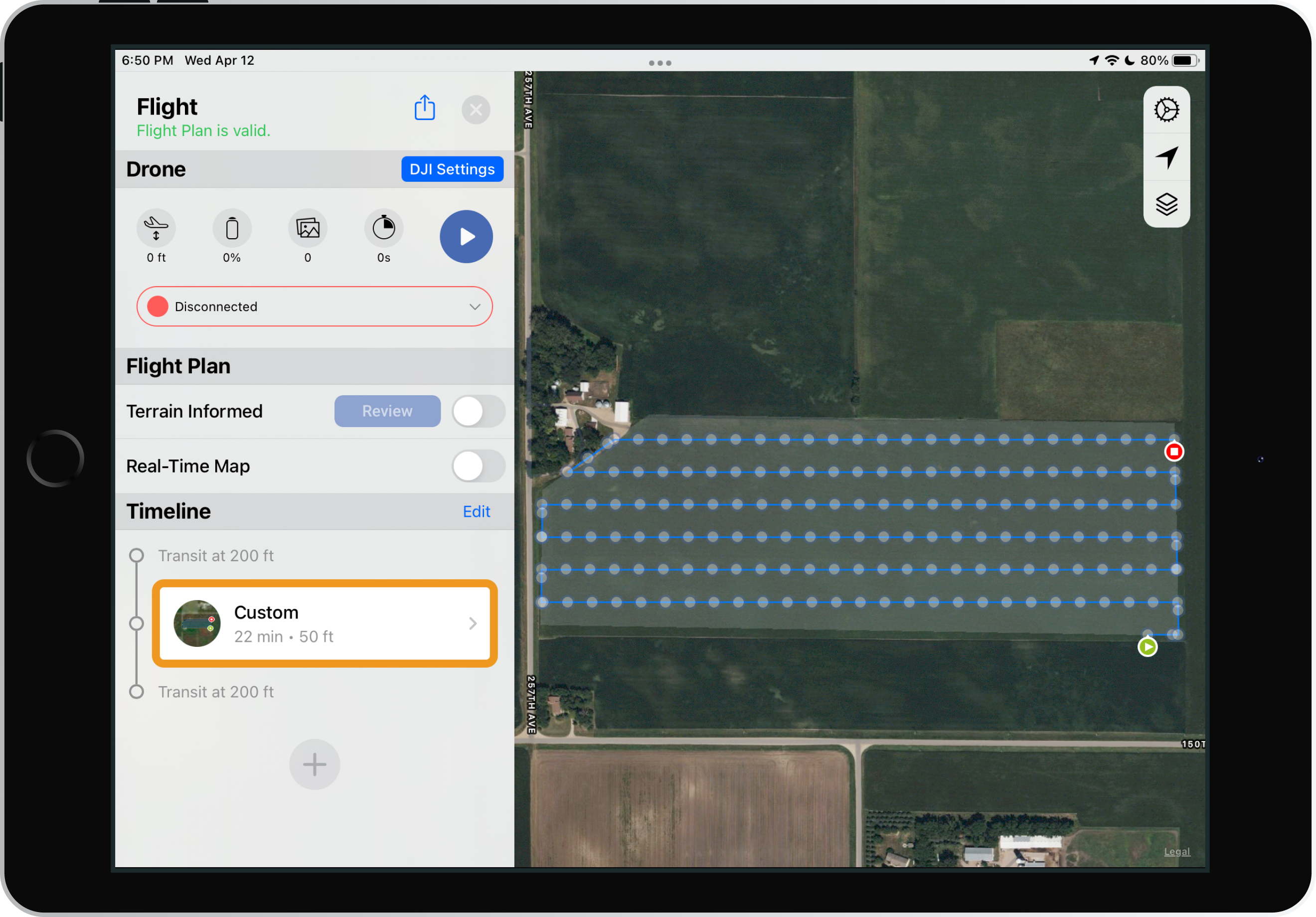

2. Select the flight segment in the timeline.


3. Press and drag the points to edit the zone. Long press on a point to reveal the option to delete a point.


4. Select the settings icon.

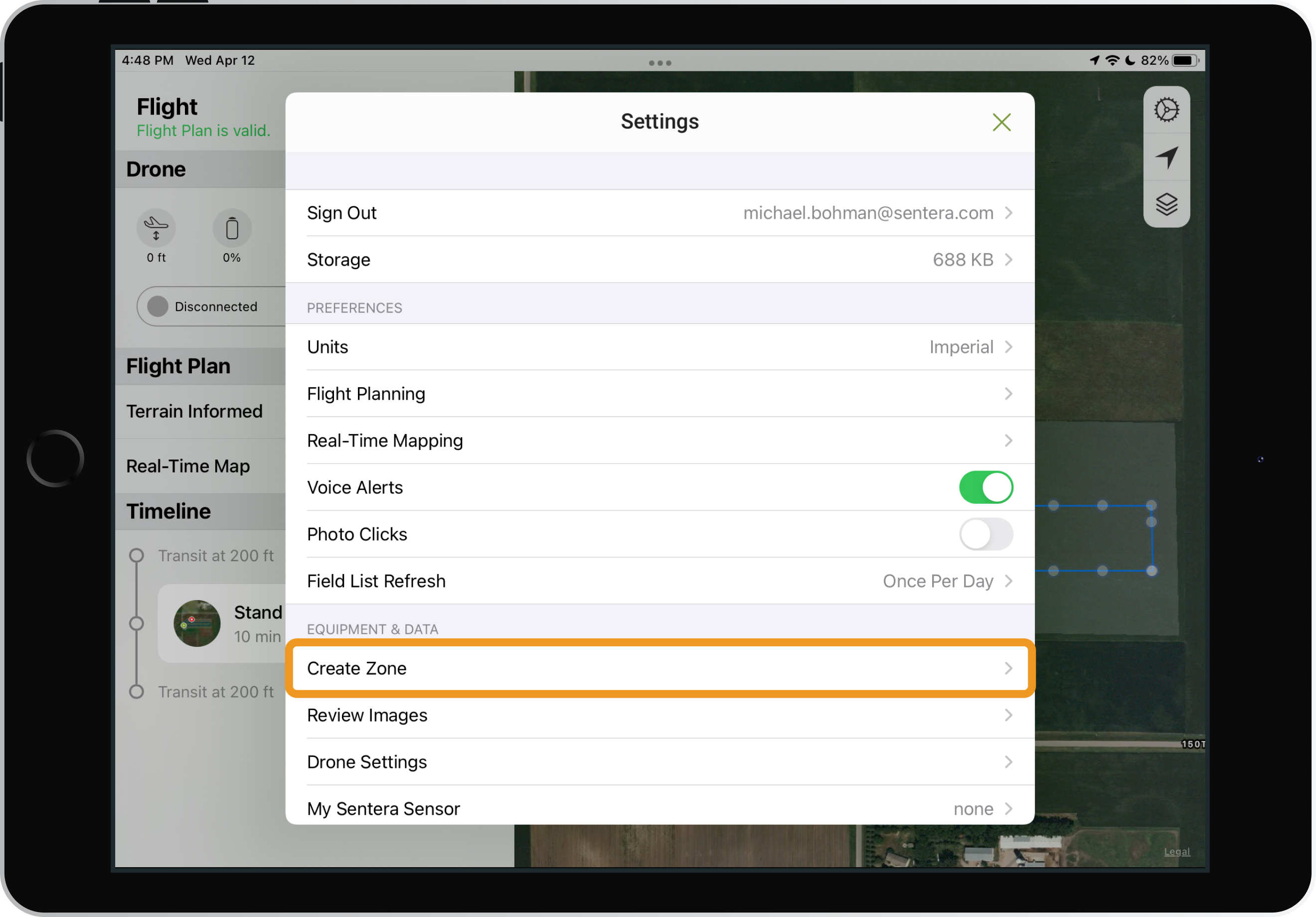

5. Scroll to "Create Zone" and select it.


6. You will be prompted to enter a new zone name. Enter the name and select “OK”.

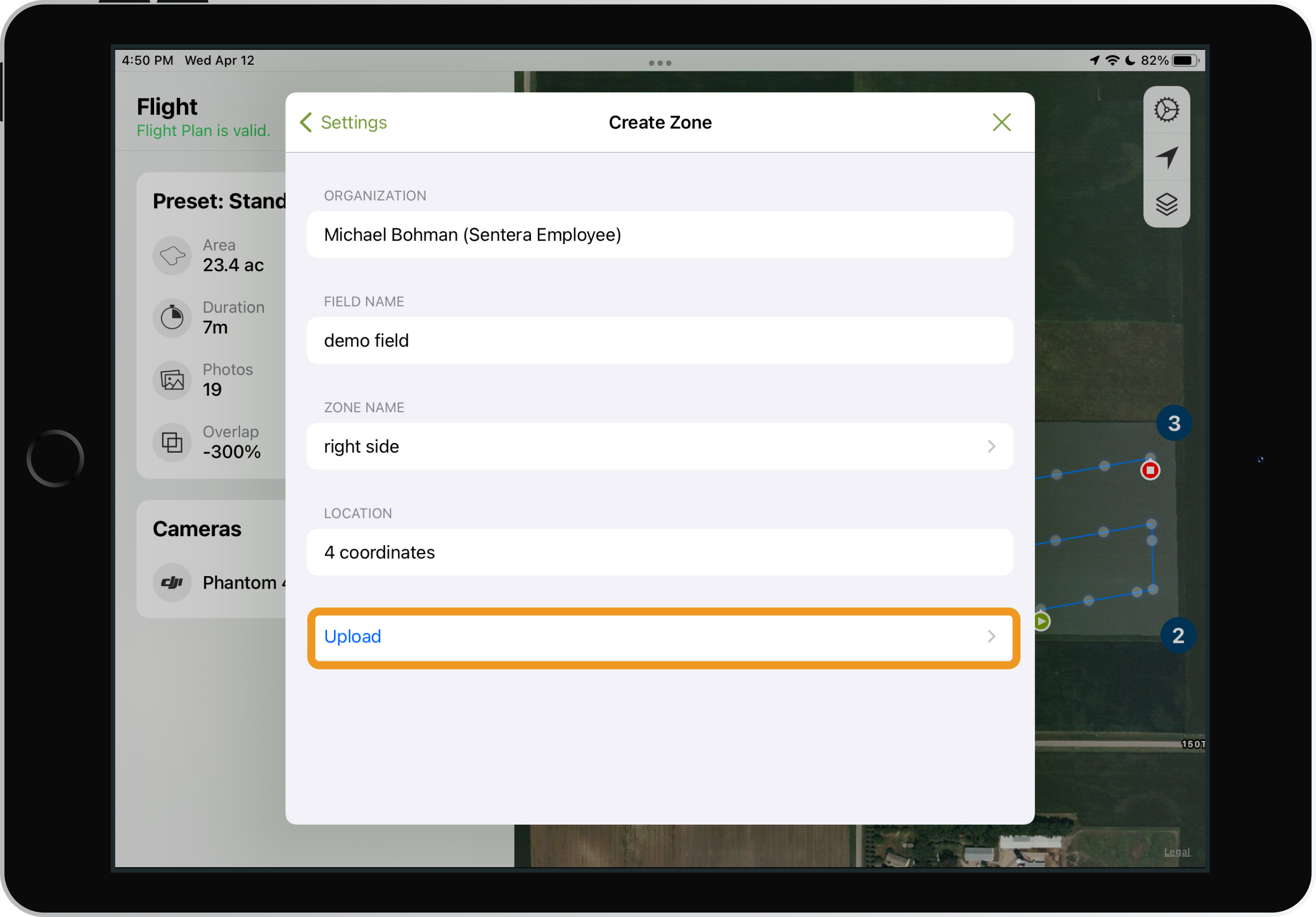

7. Select "Upload" to save the zone. When the field is uploaded, the success prompt will be displayed.

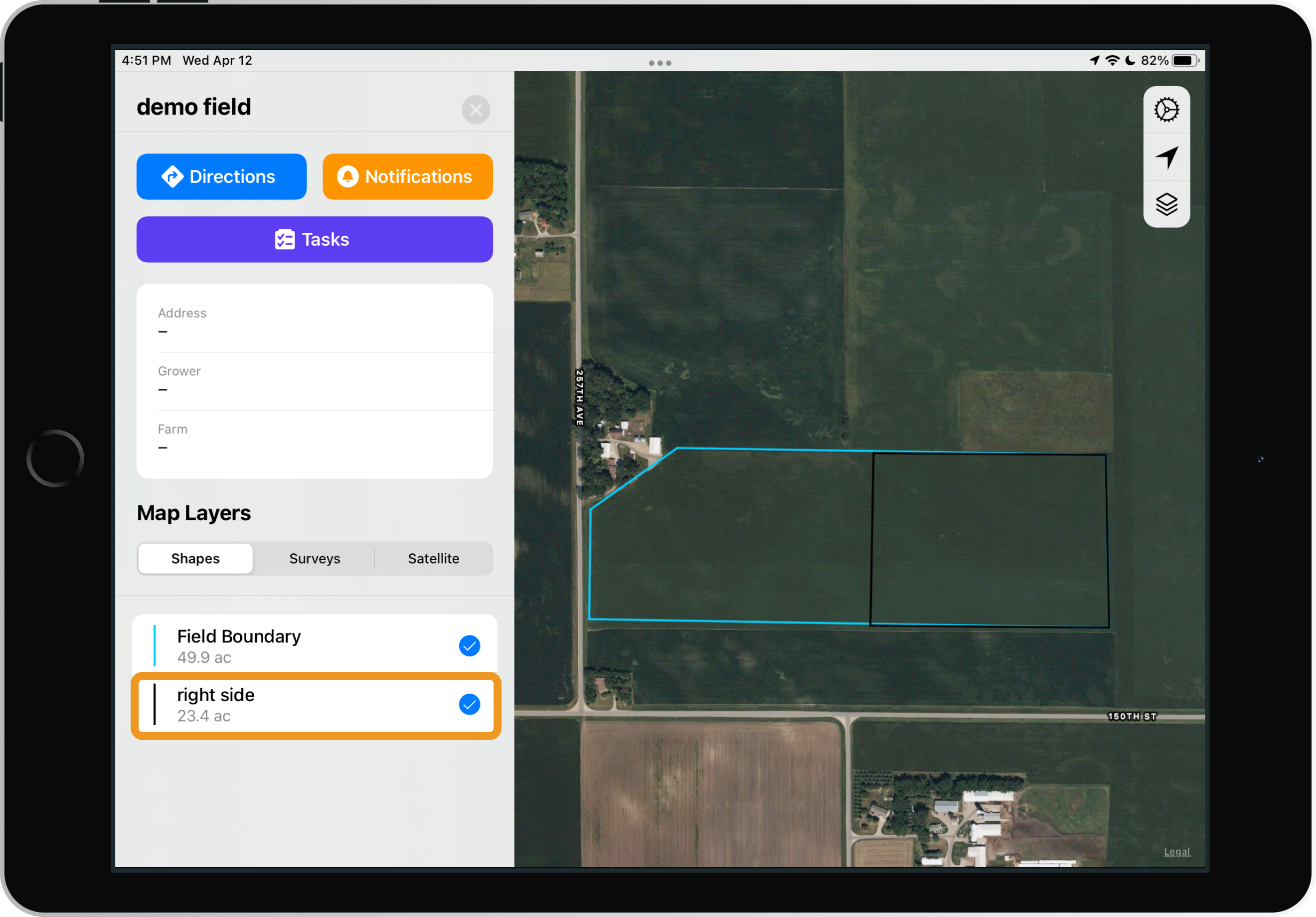

8. You can view your new zone in FieldAgent Mobile in the map layers section.
